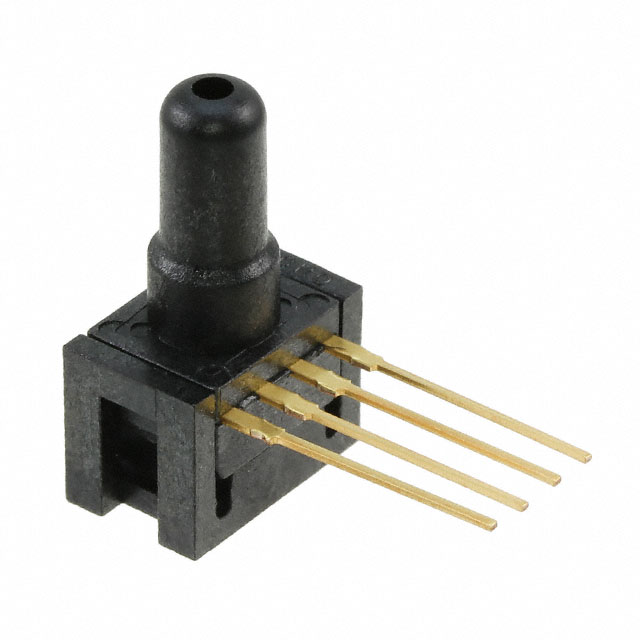

24PCCFA6A

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIA 0.2"

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIA 0.2"

Technical Specifications

Parameters and characteristics for this part

Part	Maximum Pressure	Maximum Pressure	Applications	Port Style	Port Size	Port Size	Port Size	Accuracy	Output [Min]	Output [Max]	Operating Pressure	Operating Pressure	Package / Case	Termination Style	Mounting Type	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Supplier Device Package
Honeywell Sensing and Productivity Solutions 24PCCFA2G	45 PSI	310.26 kPa	Board Mount	Barbless	6.35 mm	0.25 "	Male Tube	1 %	0 mV	225 mV	103.42 kPa	15 PSI	4-DIP Module	PC Pin	Through Hole	Compound	85 °C	-40 °C	12 V	10 VDC	Wheatstone Bridge
Honeywell Sensing and Productivity Solutions 24PCCFA6A			Board Mount	Barbless	0.2 " 5 mm			2 %	-200 mV	0 mV			4-SIP Module	PC Pin	Through Hole		85 °C	-40 °C	12 V	10 VDC	Wheatstone Bridge	2 PSI	13.79 kPa	103.42 kPa	15 PSI
Honeywell Sensing and Productivity Solutions 24PCCFA3G	45 PSI	310.26 kPa	Board Mount	Barbless	0.2 " 5 mm			1 %	0 mV	225 mV	103.42 kPa	15 PSI	4-SIP Module	PC Pin	Through Hole	Compound	85 °C	-40 °C	12 V	10 VDC	Wheatstone Bridge					4-SIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 47.80

General part information

Pressure Sensor 2PSI ~ 15PSI (13.79kPa ~ 103.42kPa) Absolute Male - 0.2" (5mm) Tube -200 mV ~ 0 mV (10V) 4-SIP Module
