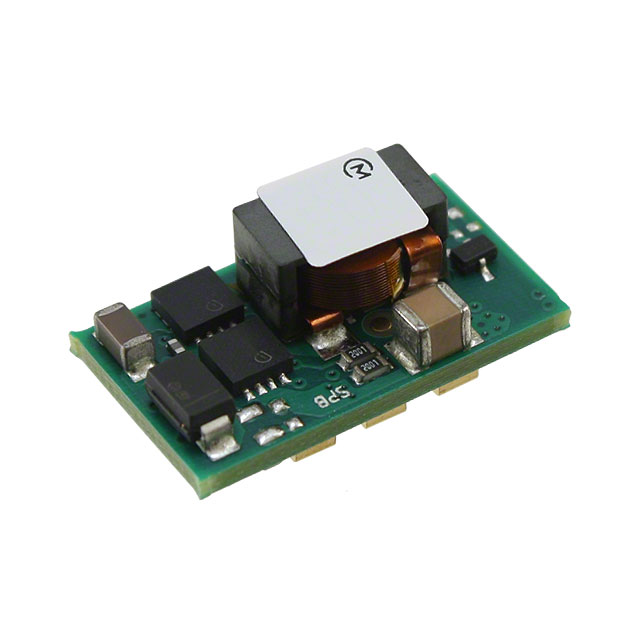

OKI-T/3-W32P-C
ObsoleteMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, 13.5 W, 750 MV, 4.5 V, 3 A, ADJUSTABLE, DOSA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
OKI-T/3-W32P-C
ObsoleteMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, 13.5 W, 750 MV, 4.5 V, 3 A, ADJUSTABLE, DOSA
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | OKI-T/3-W32P-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 89 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 14 Watts |
| Size / Dimension [x] | 20.8 mm |
| Size / Dimension [x] | 0.82 " |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [y] | 11.9 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 32 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output 1 [Max] | 4.5 V |
| Voltage - Output 1 [Min] | 0.7525 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OKI-T Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.7525 ~ 4.5V 3A 9V - 32V Input
