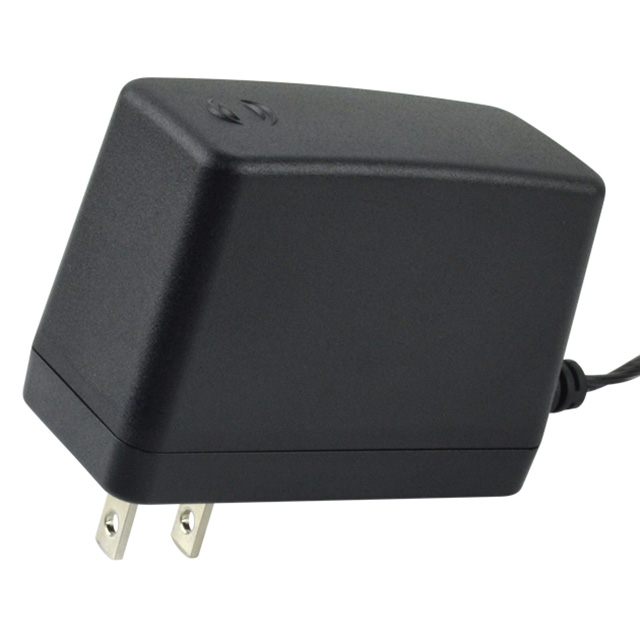

SWI18-9-N-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 20W

Deep-Dive with AI

Search across all available documentation for this part.

SWI18-9-N-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 20W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI18-9-N-P5

Applications	ITE (Commercial)
Approval Agency	CSA, UL, IEC, PSE, CB Scheme, CCC, FCC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	20 W
Region Utilized	North America
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.83 "
Size / Dimension [y]	34 mm
Size / Dimension [y]	1.34 in
Size / Dimension [z]	2.05 in
Size / Dimension [z]	52 mm
Standard Number	C22.2 No. 60950-1, 62368-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V
Weight	170.1 g
Weight	0.375 lb

SWI18 Series

Part	Region Utilized	Efficiency	Power (Watts)	Input Connector	Operating Temperature [Max]	Polarization	Cord Length	Cord Length	No Load Power Consumption	Approval Agency	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Voltage - Output	Standard Number	Form	Input Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Weight	Weight	Output Connector [z]	Output Connector [y]
CUI Inc. SWI18-5-N-P5	North America	Level VI	15 W	NEMA 1-15P	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme CCC CSA FCC IEC PSE UL	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	3 A	5 V	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	90 VAC	264 VAC	170.1 g	0.375 lb
CUI Inc. SWI18-12-N-P5R	North America	Level VI	19 W	NEMA 1-15P	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme CCC CSA FCC IEC PSE UL		2.1 mm	Barrel Plug R/A	1.6 A	12 V	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	90 VAC	264 VAC	170.1 g	0.375 lb	9.5 mm	5.5 mm
CUI Inc. SWI18-24-N-P6R	North America	Level VI	19 W	NEMA 1-15P	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme CCC CSA FCC IEC PSE UL	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	800 mA	24 V	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	90 VAC	264 VAC	170.1 g	0.375 lb
CUI Inc. SWI18-9-E-P5	Europe	CoC Tier 2 Level VI	20 W	CEE 7/16	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme EN IEC	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	2.2 A	9 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.76 in	1.34 in	70 mm	90 VAC	264 VAC	154.22 g	0.34 lb
CUI Inc. SWI18-5-E-P5	Europe	CoC Tier 2 Level VI	15 W	CEE 7/16	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme EN IEC	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	3 A	5 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.76 in	1.34 in	70 mm	90 VAC	264 VAC	154.22 g	0.34 lb
CUI Inc. SWI18-24-E-P5R	Europe	CoC Tier 2 Level VI	19 W	CEE 7/16	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme EN IEC		2.1 mm	Barrel Plug R/A	800 mA	24 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.76 in	1.34 in	70 mm	90 VAC	264 VAC	154.22 g	0.34 lb	9.5 mm	5.5 mm
CUI Inc. SWI18-5-N-P6R	North America	Level VI	15 W	NEMA 1-15P	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme CCC CSA FCC IEC PSE UL	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	3 A	5 V	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	90 VAC	264 VAC	170.1 g	0.375 lb
CUI Inc. SWI18-9-N-P7	North America	Level VI	20 W	NEMA 1-15P	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme CCC CSA FCC IEC PSE UL	1.35 mm 3.5 mm		Barrel Plug	2.2 A	9 V	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.72 in	1.34 in	69 mm	90 VAC	264 VAC			9.5 mm
CUI Inc. SWI18-24-E-P5	Europe	CoC Tier 2 Level VI	19 W	CEE 7/16	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme EN IEC	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	800 mA	24 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.76 in	1.34 in	70 mm	90 VAC	264 VAC	154.22 g	0.34 lb
CUI Inc. SWI18-9-N-P5	North America	Level VI	20 W	NEMA 1-15P	40 °C	Positive Center	1.5 m	59 in	100 mW	CB Scheme CCC CSA FCC IEC PSE UL	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	2.2 A	9 V	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Fixed Blade	ITE (Commercial)	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	90 VAC	264 VAC	170.1 g	0.375 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.19
		5	$ 12.66
		10	$ 12.44
		25	$ 12.15
		50	$ 11.94
		100	$ 11.73
		300	$ 11.41
		500	$ 11.26

Description

General part information

SWI18 Series

9V 20 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
