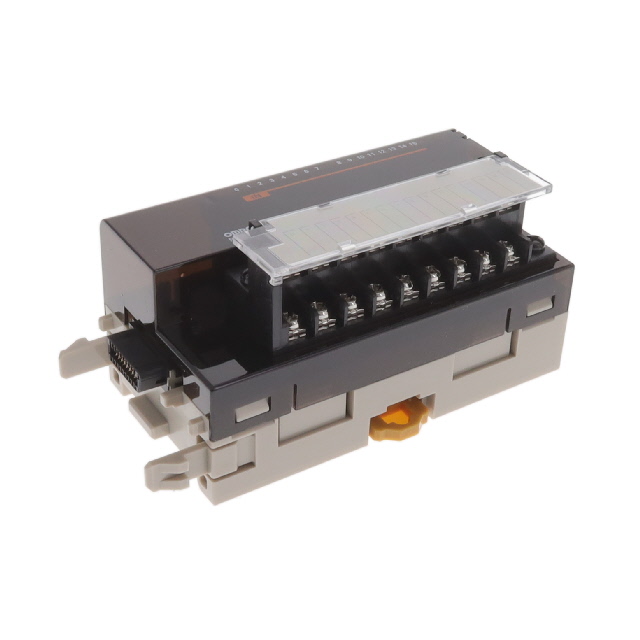

XWT-ID16-1

Active

Omron Electronics Inc-EMC Div

INPUT MODULE 16 DIGITAL

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

INPUT MODULE 16 DIGITAL

Technical Specifications

Parameters and characteristics for this part

Specification	XWT-ID16-1

Length [x]	94 mm
Length [x]	3.701 "
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Positions / Poles	16
Process Side Connection	Terminal Blocks - Screw Connection
Width [y]	50 mm
Width [y]	1.969 in

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Process Side Connection	Positions / Poles	Length [x]	Length [x]	Width [y]	Width [y]
Omron Electronics Inc-EMC Div XWT-ID16-1	55 °C	-10 °C	Terminal Blocks - Screw Connection	16	94 mm	3.701 "	50 mm	1.969 in
Omron Electronics Inc-EMC Div XWT-ID16	55 °C	-10 °C	Terminal Blocks - Screw Connection	16	94 mm	3.701 "	50 mm	1.969 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Interface Module Terminal Blocks - Screw Connection To
