000-27000

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MHV COAXIAL, STRAIGHT JACK, SOLDER, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

000-27000

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MHV COAXIAL, STRAIGHT JACK, SOLDER, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	000-27000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	MHV
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	Non-Constant
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	5000 V

000-27 Series

Part	Center Contact Plating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Material	Center Contact Material	Voltage Rating	Connector Type	Frequency - Max [Max]	Connector Style	Mating Cycles	Housing Color	Body Finish	Dielectric Material	Impedance	Ingress Protection	Features	Fastening Type	Number of Ports	Mounting Feature	Cable Group	Mounting Type	Includes	Conversion Type	Convert To (Adapter End)	Adapter Series	Impedance	Convert From (Adapter End)	Adapter Type	Style
Amphenol RF 000-27000	Silver	Solder Cup	-65 ░C	165 °C	Solder	Brass	Beryllium Copper	5000 V	Female Socket Receptacle	50 GHz	MHV	500	Silver	Nickel	Polytetrafluoroethylene (PTFE)	Non-Constant	Weatherproof	Extended Insulation	Bayonet Lock	1	Flange
Amphenol RF 000-27075	Silver	Solder	-65 ░C	165 °C	Clamp	Brass	Beryllium Copper		Female Socket Jack		MHV	500	Silver	Nickel	Polytetrafluoroethylene (PTFE)	Non-Constant	Weatherproof		Bayonet Lock	1		140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Free Hanging (In-Line)	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket
Amphenol RF 000-27750	Silver		-65 ░C	165 °C		Brass	Beryllium Copper Brass			4 GHz				Nickel	Polytetrafluoroethylene (PTFE)				Bayonet Lock				Free Hanging (In-Line)		Same Series	BNC Plug Male Pin (2)	BNC to BNC Dual	50 Ohms	BNC Jack Female Socket	Plug to Jack	T-Shape

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 16.45
		10	$ 14.49
		25	$ 13.99
Digikey	Bag	1	$ 25.06
		10	$ 21.30
		25	$ 19.96
		50	$ 19.01
		100	$ 18.10
		300	$ 16.75
		500	$ 16.16
Newark	Each	1	$ 20.25
		5	$ 19.82
		10	$ 18.72
		25	$ 17.27
		50	$ 16.84
		100	$ 15.14
		250	$ 14.29

Description

General part information

000-27 Series

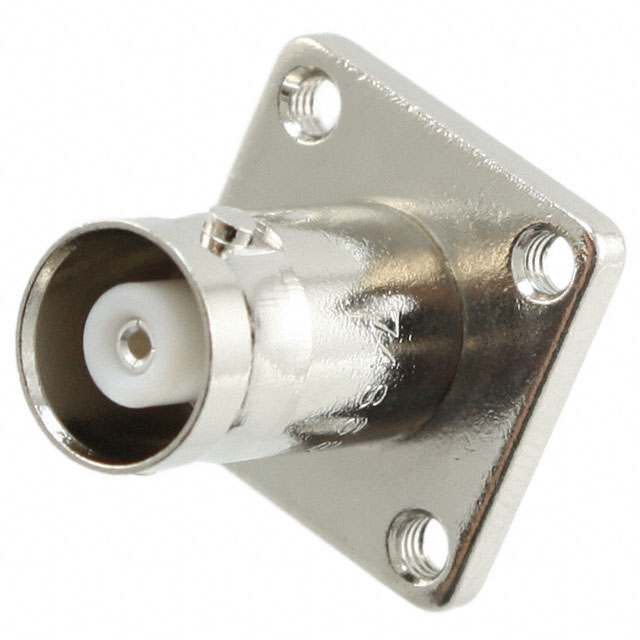

The 27000 is a UG-931/U RF Connector, MHV straight jack with silver-plated beryllium copper contacts, MHV series, solder cup termination, bayonet coupling mechanism and panel mount. Body made up of brass with nickel-plated finish and PTFE insulator.
