9350003-399

Active

Laird Thermal Systems, Inc.

MS2,192,14,20,15,25,TA,RT,W12

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS2,192,14,20,15,25,TA,RT,W12

Technical Specifications

Parameters and characteristics for this part

Specification	9350003-399

Current - Max [Max]	6.8 A
Delta Tmax @ Th	87 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	8.1 mm
Number of Stages	2
Operating Temperature	80 °C
Qmax @ Th	39.9 W
Size / Dimension [x]	40 mm
Size / Dimension [y]	40 mm
Voltage - Max [Max]	14.7 V

Part	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Delta Tmax @ Th	Features	Current - Max [Max]	Qmax @ Th	Height [z]	Operating Temperature	Number of Stages
Laird Thermal Systems, Inc. 9350003-399	40 mm	40 mm	14.7 V	87 °C	Lead Wires Sealed - Silicone RTV	6.8 A	39.9 W	8.1 mm	80 °C	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

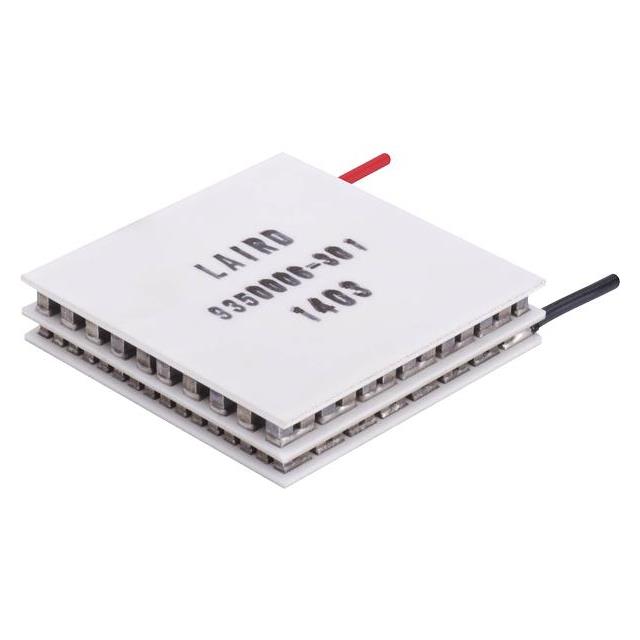

Peltier Module 39.9W @ 25°C 6.8 A 80°C
