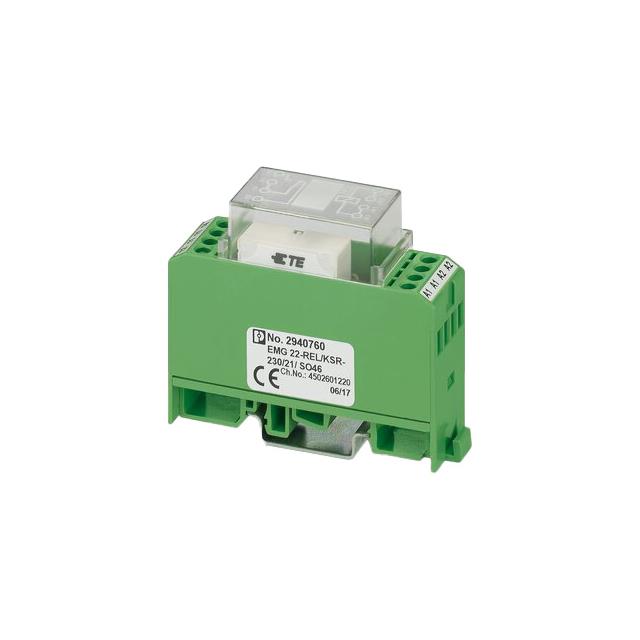

2940760
ActivePhoenix Contact
RELAY: INTERFACE; SPDT; UCOIL: 230VAC; 6A; 6A/250VAC; 6A/250VDC
Deep-Dive with AI
Search across all available documentation for this part.
2940760
ActivePhoenix Contact
RELAY: INTERFACE; SPDT; UCOIL: 230VAC; 6A; 6A/250VAC; 6A/250VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2940760 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 18 mA |
| Coil Resistance | 12.8 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Varistor, Socket Included |
| Load - Max Switching | 95 W, 1500 VA |
| Mounting Type | DIN Rail |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 102.00 | |
Description
General part information
29407 Series
General Purpose Relay SPDT (1 Form C) 230VAC Coil DIN Rail
