1267-7.7"X10"

Active

3M (TC)

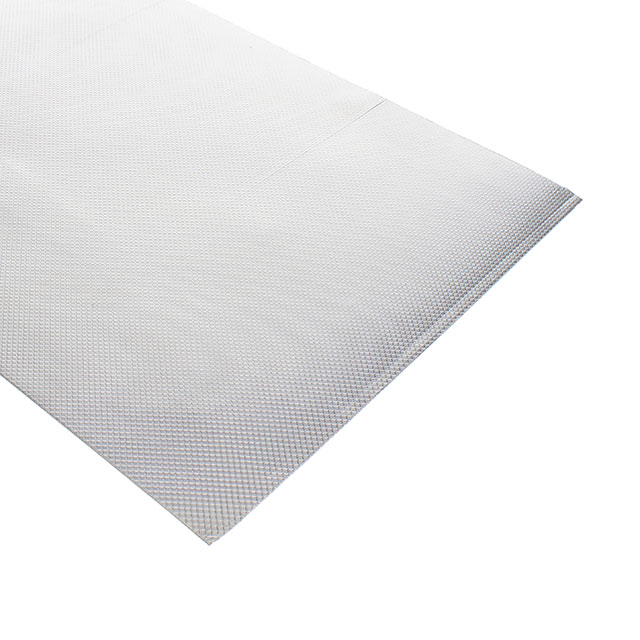

TAPE EMI SHD SILV 7.70"X10"

Search across all available documentation for this part.

Active

3M (TC)

TAPE EMI SHD SILV 7.70"X10"

Technical Specifications

Parameters and characteristics for this part

Specification	1267-7.7"X10"

Adhesive	Acrylic
Backing, Carrier	Aluminum Foil
Color	Silver
Length [x]	10 in
Length [x]	25.4 cm
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	27 °C
Storage/Refrigeration Temperature [Max]	81 °F
Storage/Refrigeration Temperature [Min]	10 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	EMI Shielding
Thickness	0.0067 "
Thickness	0.17 mm
Thickness	6.7 mils
Thickness - Adhesive	0.119 mm
Thickness - Adhesive	0.0047 "
Thickness - Adhesive	4.7 mils
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Width [x]	195.58 mm
Width [x]	7.7 in

Part	Length [x]	Length	Adhesive	Width	Width [x]	Material	Type	Length	Thickness - Overall [z]	Thickness - Overall [z]	Length [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life Start	Width [x]	Backing, Carrier	Color	Thickness	Thickness	Thickness	Shelf Life	Tape Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]
3M (TC) 1267 X 1"	36 "	16.5 m 91.44 cm	Non-Conductive Single Sided	25.4 mm	1 in	Embossed Aluminum Foil	Shielding Sheet Shielding Tape	54 ft	0.13 mm	0.005 in
3M (TC) 1267-1/2"X18YD		16.5 m	Non-Conductive Single Sided			Embossed Aluminum Foil	Shielding Tape	54 ft	0.13 mm	0.005 in
3M (TC) 1267-7.7"X10"	10 in		Acrylic		7.7 in						25.4 cm	0.119 mm	0.0047 "	4.7 mils	0.002 "	0.051 mm	2 mils	Date of Manufacture	195.58 mm	Aluminum Foil	Silver	0.0067 "	0.17 mm	6.7 mils	60 Months	EMI Shielding	27 °C	81 °F	10 °C	10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.19

General part information

EMI Shielding Tape Acrylic Adhesive Silver 7.70" (195.58mm) X 10.00" (254.000mm)
