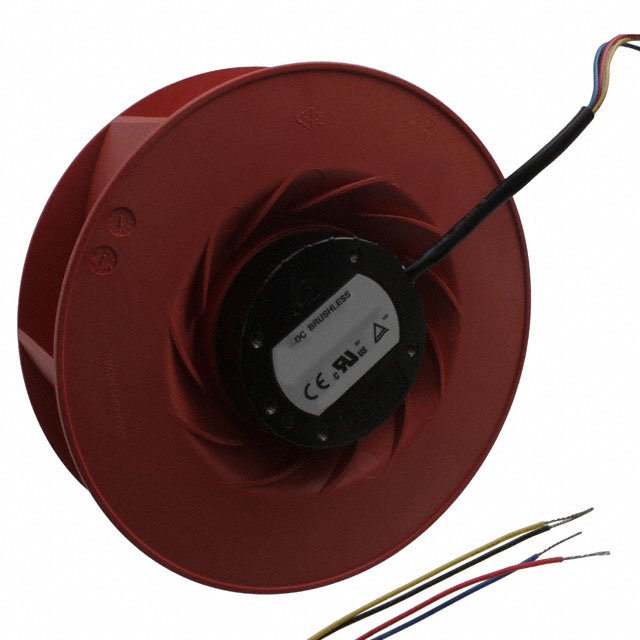

TCA1748ATXHD

Obsolete

Delta Electronics

FAN IMP MTRZD 175X69MM 48VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN IMP MTRZD 175X69MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	TCA1748ATXHD

Air Flow	428 CFM
Air Flow	11.98 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Motorized Impellers
Features	PWM Control, GR-487 (Salt Fog Protection), Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	70.8 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	76.8 W
RPM	4000 RPM
Size / Dimension [diameter]	175 mm Dia
Static Pressure	487.5 Pa
Static Pressure	1.957 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	670 g
Weight	1.5 lb
Width [x]	69 mm

Part	Width [x]	Power (Watts)	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Noise	RPM	Features	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Termination	Ingress Protection	Weight	Weight	Bearing Type	Material - Blade	Voltage - Rated [custom]	Static Pressure	Static Pressure	Size / Dimension [diameter]	Approval Agency	Lifetime @ Temp.	Current Rating (Amps)
Delta Electronics TCA1748ATXHD	69 mm	76.8 W	Aluminum	-25 °C	-25 °C	70 °C	70 °C	Motorized Impellers	70.8 dB(A)	4000 RPM	GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach)	60 V	36 VDC	428 CFM	11.98 m³/min	4 Wire Leads	IP54 - Dust Protected Water Resistant	670 g	1.5 lb	Ball	Plastic	48 VDC	487.5 Pa	1.957 in H2O	175 mm Dia	CE cURus TUV	70000 Hrs	1.6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 428.0 CFM (11.98m³/min) 4 Wire Leads
