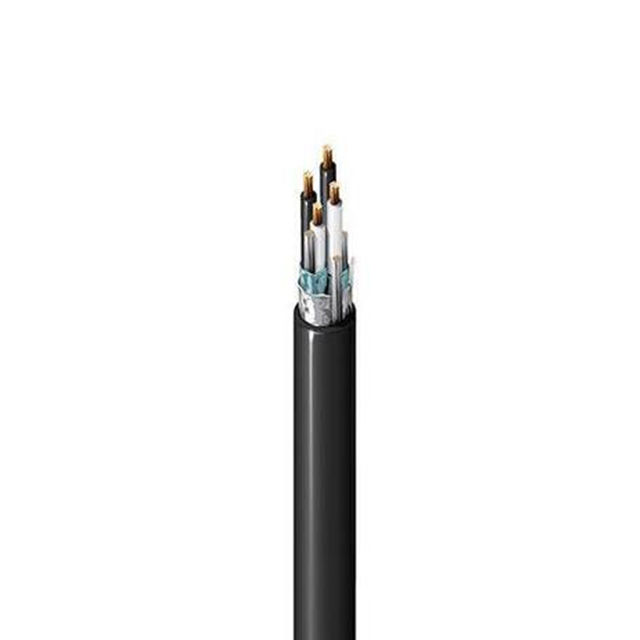

1051A 0105000

Active

Belden Inc.

MULTI-PAIR 24COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 24COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1051A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	19.94 mm
Jacket (Insulation) Diameter [diameter]	0.785 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Number of Conductors	24
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

Part	Conductor Material	Shield Material	Jacket (Insulation) Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Wire Gauge	Conductor Insulation	Cable Type	Number of Conductors
Belden Inc. 1051A 0105000	Copper Bare	Aluminum	Poly-Vinyl Chloride (PVC)	Foil	19.94 mm	0.785 in	Black	26 AWG	7	100 %	18 AWG	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Pair	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 9.88

General part information

24 (12 Pair Twisted) Conductor Multi-Pair Cable Black 18 AWG Foil 5000' (1524.0m)
