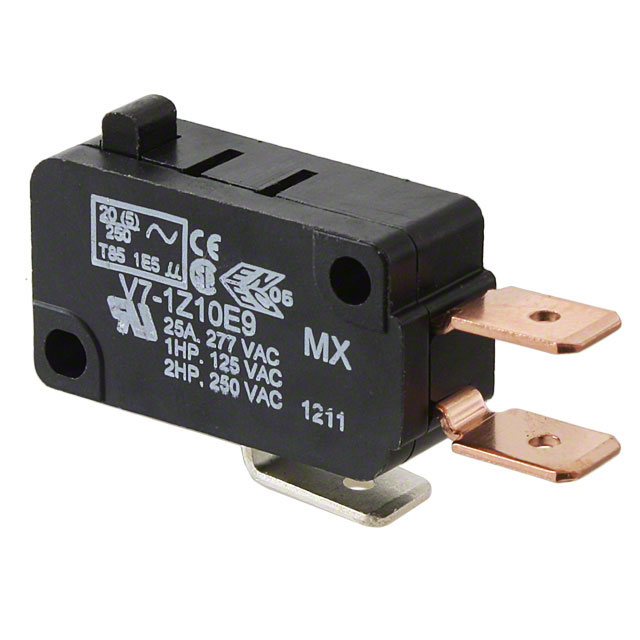

V7-1Z10E9

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 25A 277V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 25A 277V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Termination Style	Pretravel	Pretravel	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Position	Operating Position	Voltage Rating - AC	Circuit	Mechanical Life	Electrical Life	Operating Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Mounting Type	Switch Function	Operating Force [Max]	Operating Force [Min]
Honeywell Sensing and Productivity Solutions V7-1Z19E9	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	0.047 in	1.2 mm	1.27 mm	0.05 in	0.25 mm	0.01 in	0.579 in	14.7 mm	277 V	SPDT	10000000 Cycles	100000 Cycles	225 gf	25 A	85 °C	-40 °C	20 gf	Chassis Mount	On-Mom
Honeywell Sensing and Productivity Solutions V7-1Z19E9-000-2	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	0.047 in	1.2 mm	1.27 mm	0.05 in	0.25 mm	0.01 in	0.579 in	14.7 mm	277 V	SPDT	10000000 Cycles	100000 Cycles		25 A	85 °C	-40 °C	20 gf	Chassis Mount	On-Mom	190 gf	90 gf
Honeywell Sensing and Productivity Solutions V7-1Z13E993	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	0.047 in	1.2 mm	1.27 mm	0.05 in	0.25 mm	0.01 in	0.579 in	14.7 mm	277 V	SPDT	10000000 Cycles	100000 Cycles	225 gf	25 A			20 gf	Chassis Mount	On-Mom
Honeywell Sensing and Productivity Solutions V7-1Z10E9	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	0.047 in	1.2 mm	1.27 mm	0.05 in	0.25 mm	0.01 in	0.579 in	14.7 mm	277 V	SPDT	10000000 Cycles	100000 Cycles	225 gf	25 A	85 °C	-40 °C	20 gf	Chassis Mount	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
