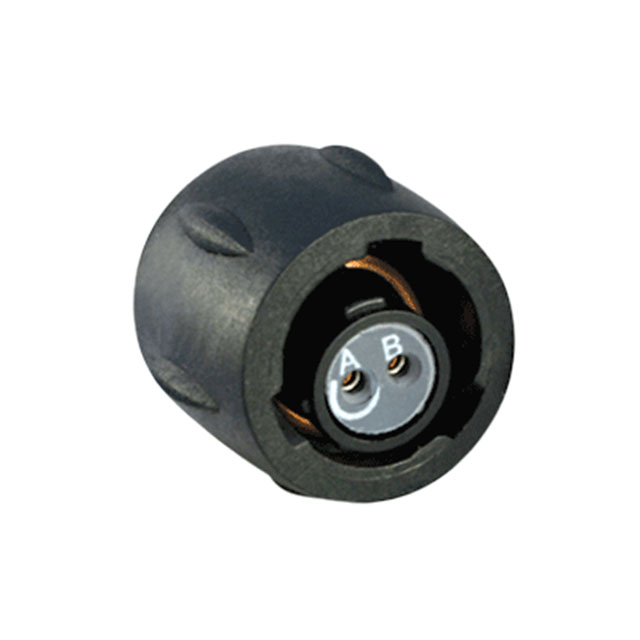

UTS68E2S

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

UTS68E2S

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS68E2S

Applications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	8-2
Shielding	Unshielded
Voltage Rating	250 VDC

UTS68 Series

Part	Orientation	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Shielding	Applications	Voltage Rating	Ingress Protection	Shell Size - Insert	Fastening Type	Mounting Type	Current Rating (Amps)	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Mating	Insert Material	Color	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton UTS68E33S	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Female Sockets Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-33	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black
Souriau-Sunbank by Eaton UTS68E33P	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Male Pins Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-33	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black
Souriau-Sunbank by Eaton UTS68E3AP	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Male Pins Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-3A	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black
Souriau-Sunbank by Eaton UTS68E3AS	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Female Sockets Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-3A	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black
Souriau-Sunbank by Eaton UTS68E2SW	W	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Female Sockets Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-2	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black	2
Souriau-Sunbank by Eaton UTS68E98S	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Female Sockets Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K		Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black		8	98
Souriau-Sunbank by Eaton UTS68E3P	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Male Pins Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-3	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black
Souriau-Sunbank by Eaton UTS68E3S	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Female Sockets Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-3	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black
Souriau-Sunbank by Eaton UTS68E2S	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Female Sockets Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-2	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black	2
Souriau-Sunbank by Eaton UTS68E4P	N	Coupling Nut UV Resistant	16 Áin	0.41 Ám	Male Pins Plug	UL94 V-0	Unshielded	Energy Instrumentation Lighting Telecommunications	250 VDC	IP68 IP69K	8-4	Bayonet Lock	Free Hanging (In-Line)	7 A	Plastic	-40 °C	105 ░C	Brass	Gold	Polychloroprene	Black	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.72
Newark	Each	1	$ 25.97
		100	$ 22.60
		500	$ 20.32
		1000	$ 19.71
		2500	$ 19.53
		5000	$ 19.35
		10000	$ 18.36

Description

General part information

UTS68 Series

2 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
