SDF-R09-213L461

Active

MH Connectors

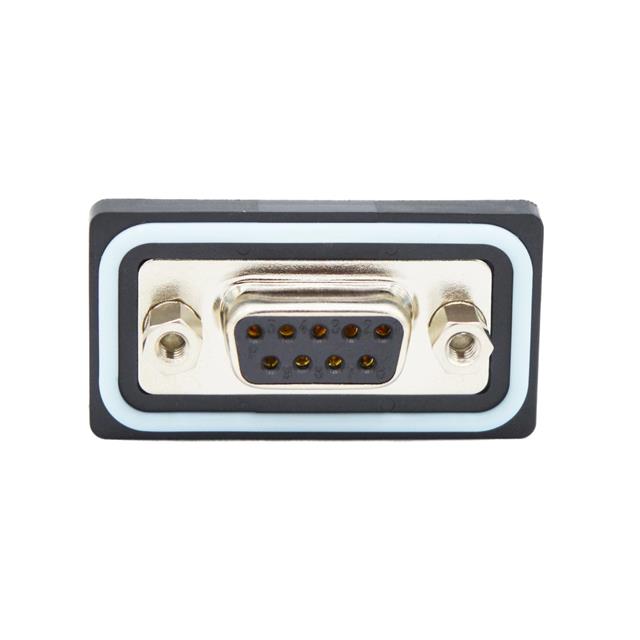

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-R09-213L461

Active

MH Connectors

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-R09-213L461

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

SDF-R09 Series

Part	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Termination	Ingress Protection	Current Rating (Amps)	Material Flammability Rating	Mounting Type	Shell Material, Finish	Contact Finish Thickness	Connector Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Connector Type	Dielectric Material	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Features
MH Connectors SDF-R09-213L011	Gold	DE E	1	Female Screwlock (4-40) Mating Side	Solder	IP67 - Dust Tight Waterproof	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Flash	D-Sub	9	-25 °C	85 °C	Brass	2	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Black	Signal
MH Connectors SDF-R09-213L462	Gold	DE E	1	Female Screwlock (4-40) Mating Side	Solder	IP67 - Dust Tight Waterproof	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel		D-Sub	9	-25 °C	85 °C	Brass	2	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Black	Signal	0.76 Ám	30 Áin	Board Lock Mounting Brackets
MH Connectors SDF-R09-213L461	Gold	DE E	1	Female Screwlock (4-40) Mating Side	Solder	IP67 - Dust Tight Waterproof	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Flash	D-Sub	9	-25 °C	85 °C	Brass	2	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Black	Signal			Board Lock Mounting Brackets
MH Connectors SDF-R09-113L012	Gold	DE E	1	Female Screwlock (4-40) Mating Side	Solder	IP67 - Dust Tight Waterproof	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel		D-Sub	9	-25 °C	85 °C	Brass	2	Male Pins Plug	Polybutylene Terephthalate (PBT)	Black	Signal	0.76 Ám	30 Áin	Grounding Indents
MH Connectors SDF-R09-113L462	Gold	DE E	1	Female Screwlock (4-40) Mating Side	Solder	IP67 - Dust Tight Waterproof	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel		D-Sub	9	-25 °C	85 °C	Brass	2	Male Pins Plug	Polybutylene Terephthalate (PBT)	Black	Signal	0.76 Ám	30 Áin	Board Lock Grounding Indents Mounting Brackets
MH Connectors SDF-R09-113L011	Gold	DE E	1	Female Screwlock (4-40) Mating Side	Solder	IP67 - Dust Tight Waterproof	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Flash	D-Sub	9	-25 °C	85 °C	Brass	2	Male Pins Plug	Polybutylene Terephthalate (PBT)	Black	Signal			Grounding Indents
MH Connectors SDF-R09-113L461	Gold	DE E	1	Female Screwlock (4-40) Mating Side	Solder	IP67 - Dust Tight Waterproof	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Flash	D-Sub	9	-25 °C	85 °C	Brass	2	Male Pins Plug	Polybutylene Terephthalate (PBT)	Black	Signal			Board Lock Grounding Indents Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.37
		10	$ 11.82
		25	$ 10.69
		40	$ 10.16
		80	$ 9.44
		230	$ 8.48
		440	$ 7.95
		945	$ 7.40

Description

General part information

SDF-R09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
