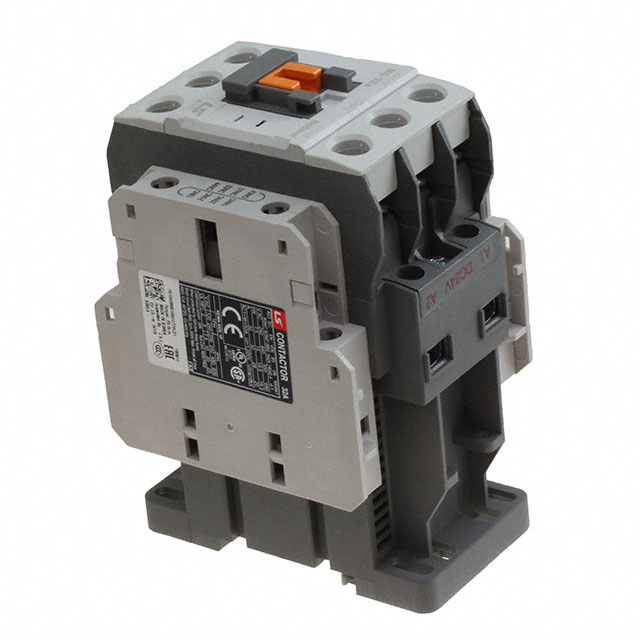

MC-32A-DC24V
ActiveAltech Corporation
CONTACTOR 3P 32A 2 NO/2 NC 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC-32A-DC24V
ActiveAltech Corporation
CONTACTOR 3P 32A 2 NO/2 NC 24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC-32A-DC24V |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 32 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 16.3 VDC |
| Must Release Voltage | 6.3 VDC |
| Operate Time | 65 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -5 °C |
| Release Time | 19 ms |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal |
MC-32 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination Style | Switching Voltage | Contact Form | Contact Rating (Current) | Coil Voltage | Features | Must Operate Voltage | Must Release Voltage | Release Time | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation | |||||||||||||
Altech Corporation | |||||||||||||
Altech Corporation | |||||||||||||
TE Connectivity Raychem Cable Protection | -5 °C | 40 °C | Chassis Mount DIN Rail | Screw Terminal | 600 VAC | 3PST-NO (3 Form A) | 32 A | 120 VAC | Auxiliary Contacts | ||||
Altech Corporation | -5 °C | 40 °C | Chassis Mount DIN Rail | Screw Terminal | 600 VAC | 3PST-NO (3 Form A) | 32 A | 120 VAC | Auxiliary Contacts | ||||
Altech Corporation | |||||||||||||
Altech Corporation | |||||||||||||
Altech Corporation | -5 °C | 40 °C | Chassis Mount DIN Rail | Screw Terminal | 600 VAC | 3PST-NO (3 Form A) | 32 A | 24 VDC | Auxiliary Contacts | 16.3 VDC | 6.3 VDC | 19 ms | 65 ms |
Altech Corporation | |||||||||||||
TE Connectivity Raychem Cable Protection |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.72 | |
| 10 | $ 111.56 | |||
| 25 | $ 105.72 | |||
| 50 | $ 101.50 | |||
| 100 | $ 97.45 | |||
Description
General part information
MC-32 Series
CONTACTOR 3P 32A 2 NO/2 NC 24VDC
