VNQ500PEPTR-E
ActiveSTMicroelectronics

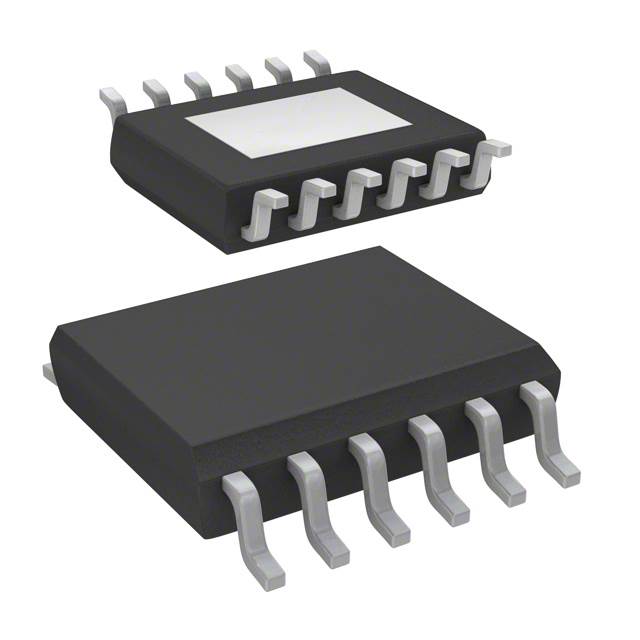

MOSFET DRVR 0.9A 4-OUT HI SIDE NON-INV 12-PIN POWERSSO T/R
Deep-Dive with AI
Search across all available documentation for this part.
VNQ500PEPTR-E
ActiveSTMicroelectronics
MOSFET DRVR 0.9A 4-OUT HI SIDE NON-INV 12-PIN POWERSSO T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VNQ500PEPTR-E |
|---|---|
| Current - Output (Max) [Max] | 400 mA |
| Fault Protection | Over Temperature, UVLO, Current Limiting (Fixed) |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 12-PowerLSOP |
| Ratio - Input:Output [custom] | 1:1 |
| Supplier Device Package | PowerSSO-12 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 36 V |
| Voltage - Load [Min] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
VNQ500 Series
The VNQ500 is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground.
Active current limitation, combined with latched thermal shutdown, protect the device against overload.
In the case of over temperature of one channel the relative I/O pin is pulled down.
