Q-0103J0001002M

Active

Amphenol Custom Cable

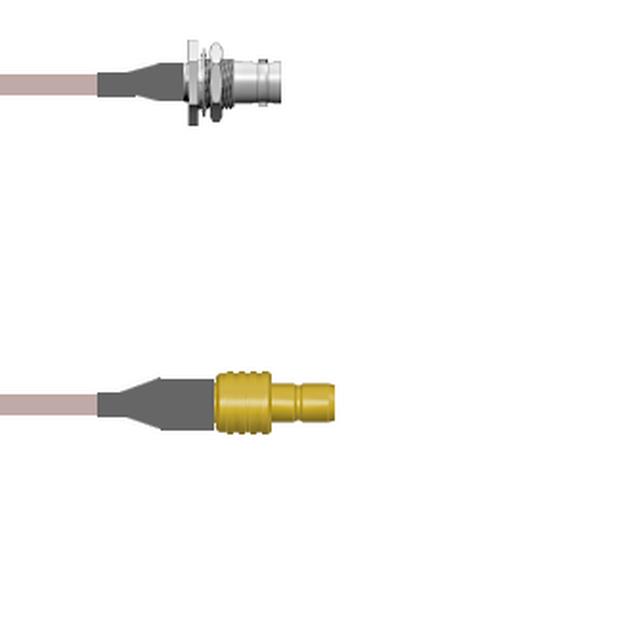

CBL ASSY BNC-SMB JACK-JACK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0103J0001002M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-JACK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0103J0001002M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0103J0 Series

Part	Frequency - Max [Max]	1st Contact Gender	1st Connector Mounting Type	Overall Impedance	Length	Length	Style	Cable Type	Features	2nd Contact Gender	1st Connector Mounting Feature	Color	2nd Connector Mounting Type	2nd Connector	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0103J0001012i	4 GHz	Female	Panel Mount	50 Ohms	12 "	304.8 mm	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack
Amphenol Custom Cable Q-0103J0001.75M	4 GHz	Female	Panel Mount	50 Ohms	29.53 "	750 mm	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack
Amphenol Custom Cable Q-0103J0001036i	4 GHz	Female	Panel Mount	50 Ohms	36 in	91.44 cm	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack
Amphenol Custom Cable Q-0103J0001072i	4 GHz	Female	Panel Mount	50 Ohms	72 in	1.8 m	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack	6 ft
Amphenol Custom Cable Q-0103J0001003M	4 GHz	Female	Panel Mount	50 Ohms	118.1 in	3 m	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack	9.8 '
Amphenol Custom Cable Q-0103J0001001M	4 GHz	Female	Panel Mount	50 Ohms	39.4 in	1 m	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack	3.3 ft
Amphenol Custom Cable Q-0103J0001048i	4 GHz	Female	Panel Mount	50 Ohms	48 in	1200 mm	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack	4 ft
Amphenol Custom Cable Q-0103J0001006i	4 GHz	Female	Panel Mount	50 Ohms	6 in	152.4 mm	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack
Amphenol Custom Cable Q-0103J0001002M	4 GHz	Female	Panel Mount	50 Ohms	78.7 in	2 m	BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack	6.6 ft
Amphenol Custom Cable Q-0103J0001018i	4 GHz	Female	Panel Mount	50 Ohms			BNC to SMB	RG-178	Shielded	Female	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	SMB Jack	BNC Jack		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 122.81
		25	$ 114.45
		50	$ 106.10
		100	$ 98.94
		250	$ 92.97

Description

General part information

Q-0103J0 Series

Cable Assembly Coaxial BNC to SMB RG-178 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
