19370161421

Active

HARTING Technology Group

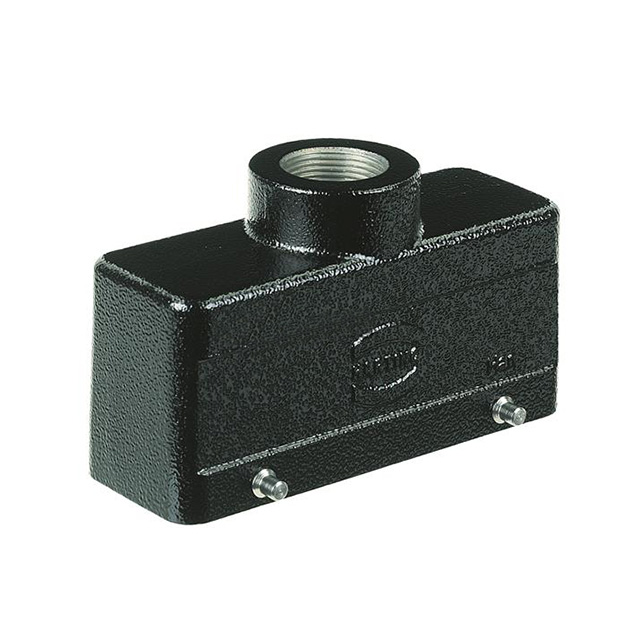

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16B; FOR CABLE; HAN® M; M25

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16B; FOR CABLE; HAN® M; M25

Technical Specifications

Parameters and characteristics for this part

Specification	19370161421

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	1.772 in
Size / Dimension [z]	45 mm
Style	Top Entry
Thread Size	M25

Part	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Lock Location	Thread Size	Ingress Protection	Housing Material	Housing Finish	Connector Type	Size	Style
HARTING Technology Group 19370161421	Black	125 °C	-40 °C	1.693 in	93.5 mm	43 mm	3.681 "	1.772 in	45 mm	Locking Clip (2) on Base Bottom	M25	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	Hood	16 B	Top Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 16B IP65 - Dust Tight, Water Resistant
