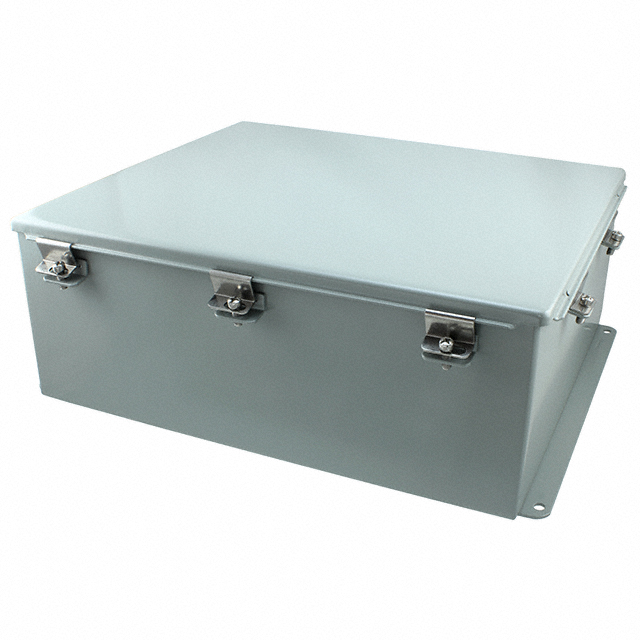

A1614CHNF

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 16"L X 14"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 16"L X 14"W

Technical Specifications

Parameters and characteristics for this part

Specification	A1614CHNF

Area (L x W)	1445 cm²
Area (L x W)	224 in²
Color	Gray
Container Type	Junction Box
Design	Hinged Door, Lid
Features	Wall Mount, Stainless Steel Hinges
Height [z]	5.984 in
Height [z]	152 mm
Material	Metal, Steel
Size / Dimension [x]	15.984 in
Size / Dimension [x]	406 mm
Size / Dimension [y]	14.016 in
Size / Dimension [y]	356 mm
Thickness	14 Gauge
Weight	22 lbs
Weight	10 kg

Part	Material	Area (L x W)	Area (L x W)	Weight	Weight	Thickness	Container Type	Design	Features	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Height [z]	Height [z]
Hoffman Enclosures, Inc. A1614CH	Metal Steel	1445 cm²	224 in²	9.5 kg	21 lbs	14 Gauge	Junction Box	Hinged Door Lid	Sealing Gasket	Gray	14.016 in	15.984 in	356 mm	406 mm	50E IP65 NEMA 12 NEMA 13 UL-50	5.984 in	152 mm
Hoffman Enclosures, Inc. A1614CHNF	Metal Steel	1445 cm²	224 in²	10 kg	22 lbs	14 Gauge	Junction Box	Hinged Door Lid	Stainless Steel Hinges Wall Mount	Gray	14.016 in	15.984 in	356 mm	406 mm		5.984 in	152 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Hinged Door, Lid 15.984" L x 14.016" W (406.00mm x 356.00mm) X 5.984" (152.00mm)
