SA56-51PBWA/A

Obsolete

Kingbright

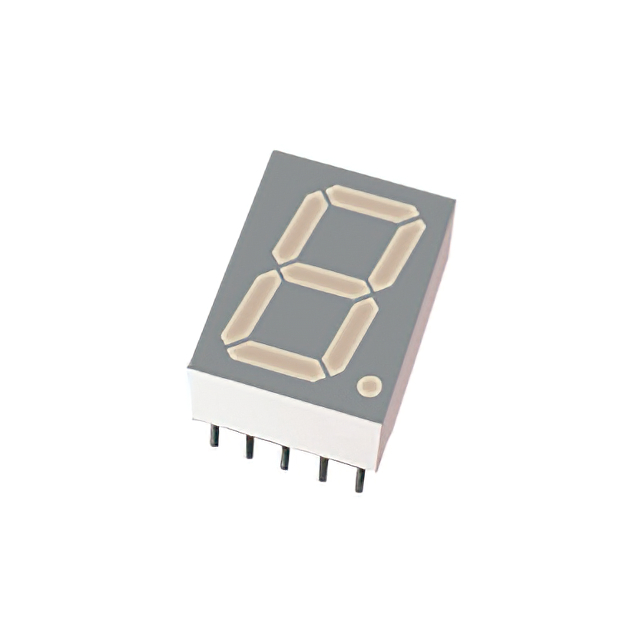

0.56" BLUE 7-SEGMENT LED DISPLAY

Deep-Dive with AI

Search across all available documentation for this part.

SA56-51PBWA/A

Obsolete

Kingbright

0.56" BLUE 7-SEGMENT LED DISPLAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA56-51PBWA/A

Color	Blue
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	6 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	12.5 mm
Size / Dimension [x]	0.492 in
Size / Dimension [y]	8.25 mm
Size / Dimension [y]	0.325 in
Size / Dimension [z]	17.02 mm
Size / Dimension [z]	0.67 in
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength - Peak	468 nm

SA56-51 Series

Part	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Display Type	Color	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Common Pin	Millicandela Rating	Current - Test	Number of Characters [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Wavelength - Peak
Kingbright SA56-51PBWA/A	0.6 in	15.24 mm	10-DIP	0.56 in	14.22 mm	7-Segment	Blue	120 mW	3.05 V	Common Anode	6 mcd	10 mA	1	12.5 mm	17.02 mm	0.67 in	0.492 in	8.25 mm	0.325 in	468 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.55

Description

General part information

SA56-51 Series

Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.05V 10mA 0.670" H x 0.492" W x 0.325" D (17.02mm x 12.50mm x 8.25mm) 10-DIP (0.600", 15.24mm)
