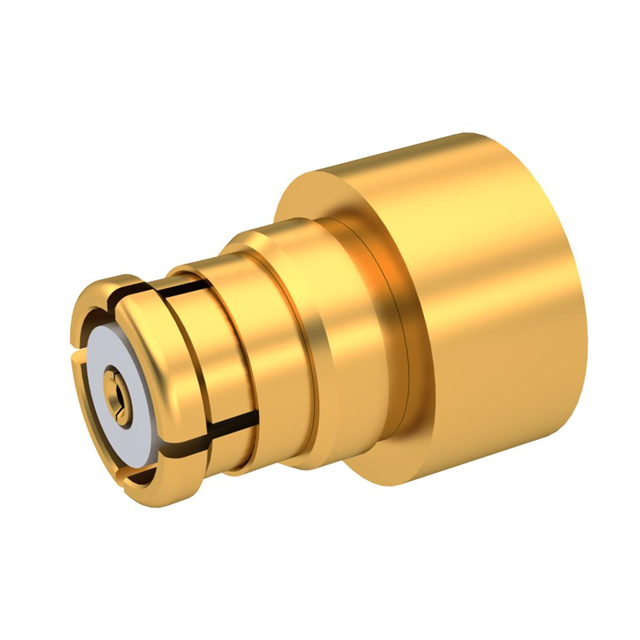

R222152000

Active

Radiall USA, Inc.

SMP F RA SD .085 C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMP F RA SD .085 C100

Technical Specifications

Parameters and characteristics for this part

Specification	R222152000

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Dielectric Material	Body Finish	Connector Type	Body Material	Fastening Type	Frequency - Max [Max]	Impedance	Shield Termination	Contact Termination	Housing Color	Cable Group	Cable Group	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Center Contact Plating	Center Contact Material	Number of Ports	Includes
Radiall USA, Inc. R222151000	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Plug	Beryllium Copper	Snap-On	26.5 GHz	50 Ohms	Solder	Solder	Gold	Semi Rigid	0.047 in	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	270 V	Gold	Beryllium Copper	1
Radiall USA, Inc. R222152300W	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Plug	Bronze	Snap-On	40 GHz	50 Ohms	Solder	Solder	Gold	RG-405 (.085" Semi Rigid)		Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	335 V	Gold	Bronze	1
Radiall USA, Inc. R222151000W	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Plug	Beryllium Copper	Snap-On	26.5 GHz	50 Ohms	Solder	Solder	Gold	Semi Rigid	0.047 in	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	270 V	Gold	Beryllium Copper	1
Radiall USA, Inc. R222152000	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Plug	Beryllium Copper	Snap-On	26.5 GHz	50 Ohms	Solder	Solder	Gold	RG-405 (.085" Semi Rigid)		Free Hanging (In-Line)	-65 ░C	165 °C	335 V	Gold	Beryllium Copper	1	1 Connector 1 End Cap
Radiall USA, Inc. R222152000W	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Plug	Beryllium Copper Brass	Snap-On	26.5 GHz	50 Ohms	Solder	Solder	Gold	RG-405 (.085" Semi Rigid)		Free Hanging (In-Line)	-65 ░C	165 °C	335 V	Gold	Beryllium Copper	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
