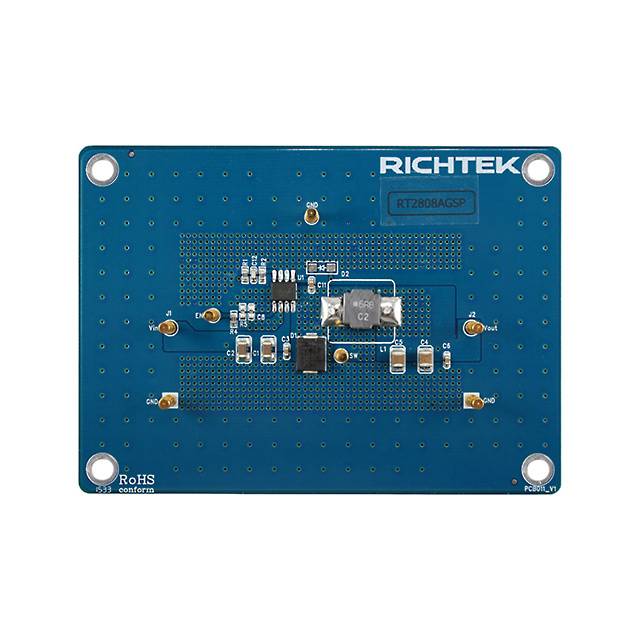

EVB_RT2808AGSP

Active

Richtek USA Inc.

EVAL MODULE FOR RT2808AGSP

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT2808AGSP

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Mounting Type	Supplier Device Package	Voltage - Input (Max) [Max]	Topology	Voltage - Input (Min) [Min]	Output Configuration	Number of Outputs	Synchronous Rectifier	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Package / Case	Package / Case	Package / Case	Frequency - Switching	Voltage - Output	Main Purpose	Regulator Topology	Utilized IC / Part	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Outputs and Type
Richtek USA Inc. RT2808AGSP	Adjustable	Step-Down	85 °C	-40 °C	3 A	Surface Mount	8-SOP-EP	36 V	Buck	5.5 V	Positive	1		26 V	1.222 V	0.154 in	8-SOIC	3.9 mm	500 kHz
Richtek USA Inc. EVB_RT2808AGSP					3 A														500 kHz	2.5 V	DC/DC Step Down	Buck	RT2808A	Fully Populated	5.5 V	36 V	Board(s)	Non-Isolated	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RT2808A - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
