NAR131SB

Obsolete

Stanley Electric Co

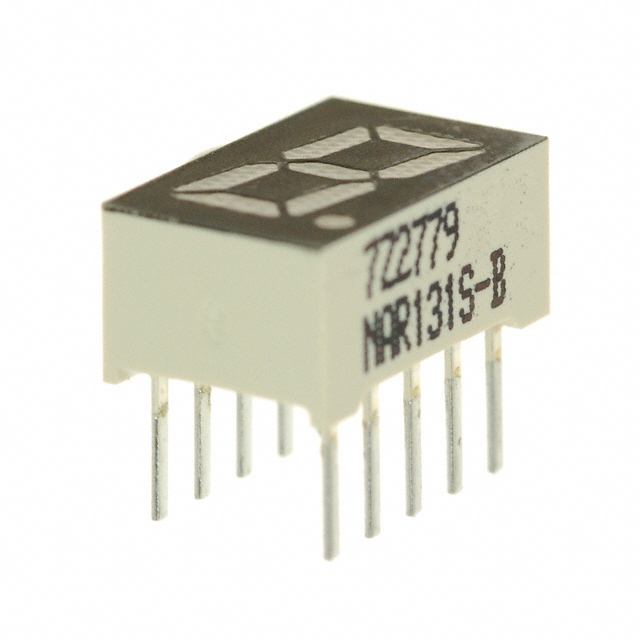

DISPLAY 7SEG 0.31" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NAR131SB

Obsolete

Stanley Electric Co

DISPLAY 7SEG 0.31" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NAR131SB

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	8 mm
Digit/Alpha Size	0.31 in
Display Type	7-Segment
Millicandela Rating	2.8 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Power Dissipation (Max) [Max]	40 mW
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Size / Dimension [z]	5 mm
Size / Dimension [z]	0.197 in
Voltage - Forward (Vf) (Typ)	1.7 V
Wavelength - Peak	660 nm

NAR131 Series

Part	Color	Common Pin	Current - Test	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Characters [custom]	Display Type	Wavelength - Peak	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating
Stanley Electric Co NAR131SH-D34
Stanley Electric Co NAR131SB	Red	Common Anode	10 mA	1.7 V	40 mW	5 mm	11 mm	7 mm	0.197 in	0.433 in	0.276 in	1	7-Segment	660 nm	10-DIP	8 mm	0.31 in	2.8 mcd
Stanley Electric Co NAR131S-C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NAR131 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.7V 10mA 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) 10-DIP (0.209", 5.30mm)
