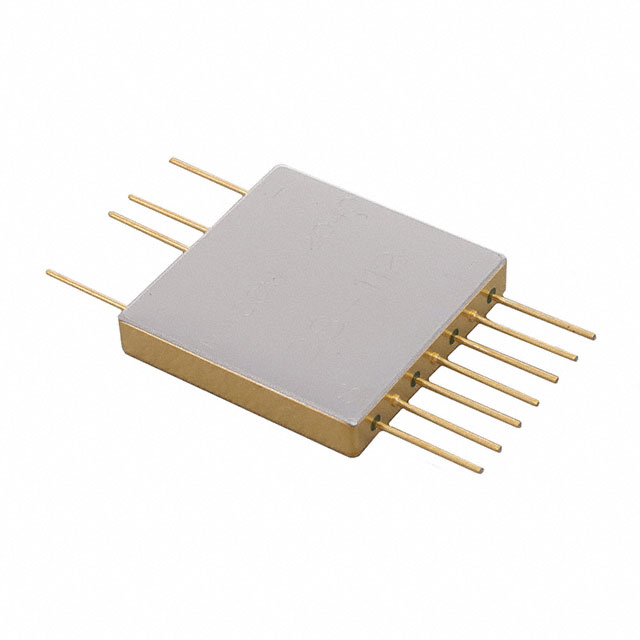

DS-112-PIN
ActiveMACOM Technology Solutions
POWER_DIVIDER,4-WAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS-112-PIN
ActiveMACOM Technology Solutions
POWER_DIVIDER,4-WAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS-112-PIN |
|---|---|
| Frequency [Max] | 500 MHz |
| Frequency [Min] | 10 MHz |
| Insertion Loss | 0.85 dB |
| Package / Case | FP-5 |
| Size / Dimension [x] | 0.811 in |
| Size / Dimension [x] | 20.6 mm |
| Size / Dimension [y] | 0.811 " |
| Size / Dimension [y] | 20.6 mm |
| Size / Dimension [z] | 3.8 mm |
| Size / Dimension [z] | 0.15 " |
| Specifications [Max] | 1.5 VSWR, 5 ° |
| Specifications [Min] | 25 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 529.17 | |
| 10 | $ 502.13 | |||
Description
General part information
DS-112 Series
RF Power Divider 10 MHz ~ 500 MHz Isolation (Min) 25dB, 1.5 VSWR (Max), 5° Imbalance (Max) FP-5
