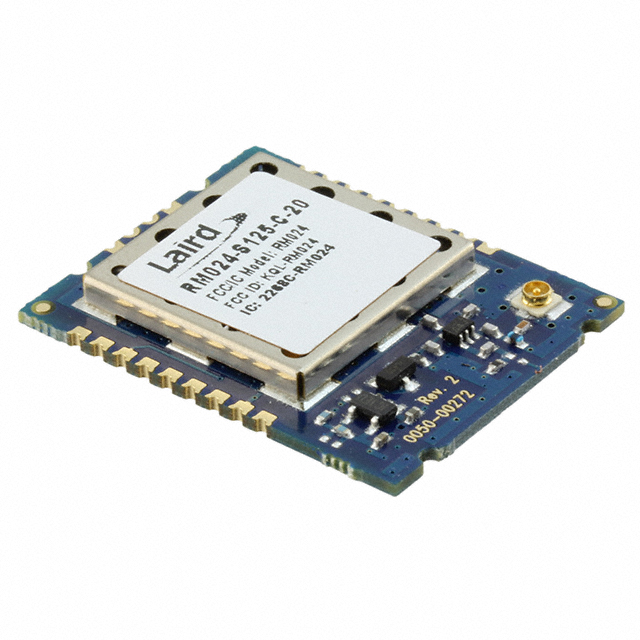

RM024-S125-C-30
ActiveEzurio LLC
RF TXRX MOD ISM>1GHZU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRM024 User Guide
RM024-S125-C-30
ActiveEzurio LLC
RF TXRX MOD ISM>1GHZU.FL SMD
Deep-Dive with AI
DocumentsRM024 User Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | RM024-S125-C-30 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 36 mA |
| Current - Transmitting [Max] | 136 mA |
| Current - Transmitting [Min] | 40 mA |
| Data Rate | 500 kbps |
| Frequency | 2.4 GHz |
| Modulation | MSK, FHSS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 21 dBm |
| Protocol | RAMP |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -95 dBm |
| Serial Interfaces | UART |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 39.52 | |
| 50 | $ 39.40 | |||
Description
General part information
RM024-S125 Series
General ISM > 1GHz RAMP Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
