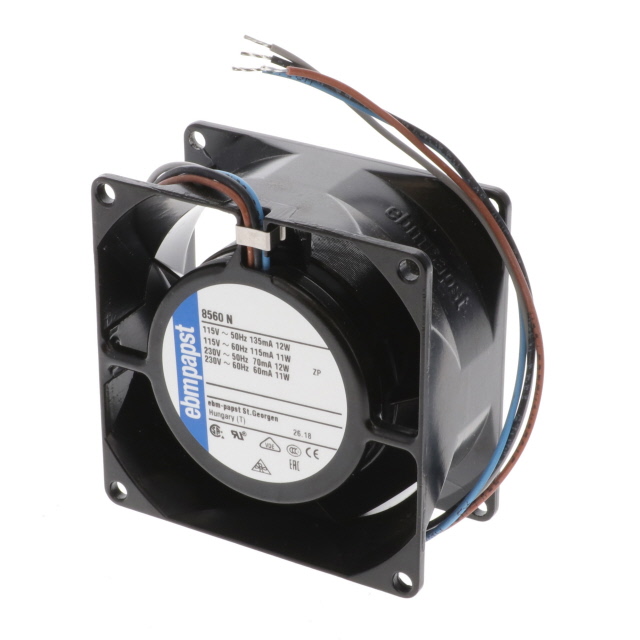

8560N
Obsoleteebm-papst Inc.
AC AXIAL FAN
Deep-Dive with AI
Search across all available documentation for this part.
8560N
Obsoleteebm-papst Inc.
AC AXIAL FAN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8560N |
|---|---|
| Bearing Type | Sleeve |
| Fan Type | Tubeaxial |
| Features | Dual Voltage |
| Lifetime @ Temp. | 42500 Hrs |
| Material - Blade | Steel |
| Material - Frame | Steel |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 79.5 mm |
| Size / Dimension [z] | 79.5 mm |
| Termination | 4 Wire Leads |
| Voltage - Rated [Max] | 230 VAC |
| Voltage - Rated [Min] | 115 VAC |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
8560 Series
Fan Tubeaxial 115/230VAC Square - 79.5mm L x 79.5mm H Sleeve 4 Wire Leads
Documents
Technical documentation and resources
No documents available
