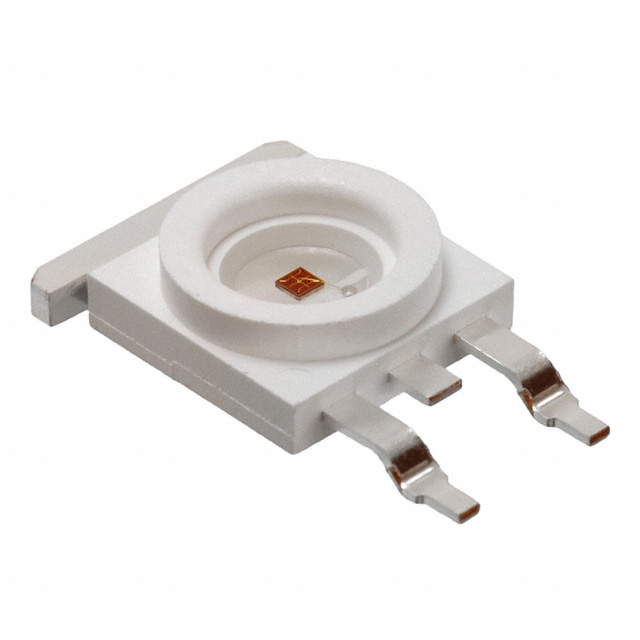

ASMT-MR00-AHJ00

Obsolete

Broadcom Limited

LED MOONSTONE RED 628NM

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED MOONSTONE RED 628NM

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-MR00-AHJ00

Color	Red
Current - Max [Max]	350 mA
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	3.4 mm
Height - Seated (Max) [Max] [z]	0.134 in
Lumens/Watt @ Current - Test	54 lm/W
Luminous Flux @ Current/Temperature	45 lm
Luminous Flux @ Current/Temperature [Max]	56 lm
Luminous Flux @ Current/Temperature [Min]	33 lm
Mounting Type	Surface Mount
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Size / Dimension [x]	0.335 "
Size / Dimension [x]	8.5 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Thermal Resistance of Package [custom]	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.4 V
Wavelength	628 nm
Wavelength [Max]	635 nm
Wavelength [Min]	620 nm

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Lumens/Watt @ Current - Test	Wavelength [Min]	Wavelength [Max]	Wavelength	Current - Test	Current - Max [Max]	Mounting Type	Package / Case	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Thermal Resistance of Package [custom]
Broadcom Limited ASMT-MR00-AHJ00	0.335 "	8.5 mm	0.335 in	8.5 mm	2.4 V	Red	54 lm/W	620 nm	635 nm	628 nm	350 mA	350 mA	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	33 lm	45 lm	56 lm	3.4 mm	0.134 in	120 °	12 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.14

General part information

LED Lighting Color Moonstone™ Red 628nm (620nm ~ 635nm) TO-252-3, DPAK (2 Leads + Tab), SC-63
