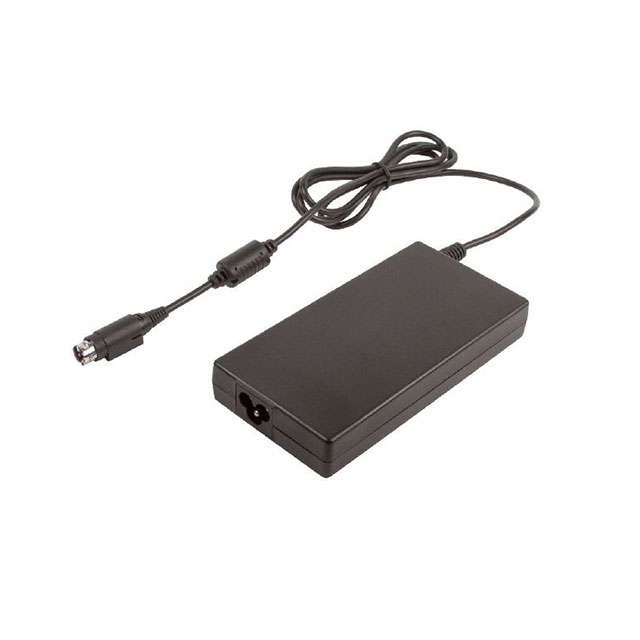

AJM90PS18C2

Active

XP POWER

AC/DC DESKTOP ADAPTER 18V 90W

Search across all available documentation for this part.

Active

XP POWER

AC/DC DESKTOP ADAPTER 18V 90W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Output Connector	Output Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Weight	Weight	Current - Output (Max) [Max]	Applications	Approval Agency	Form	Input Connector	Power (Watts)	Efficiency	Region Utilized	Input Type	Operating Temperature [Max]
XP POWER AJM90PS24C2	24 V	4 Pin	Power DIN	22 mm	0.87 in	140 mm	2.8 in	5.51 "	71 mm	210 mW	1.5 m	59 in	264 VAC	80 VAC	0.772 lb	350.17 g	3.75 A	ITE (Commercial)	CB	Desktop (Class II)	IEC 320-C8	90 W	Level VI	International	Cord	60 °C
XP POWER AJM90PS18C2	18 V	4 Pin	Power DIN	22 mm	0.87 in	140 mm	2.8 in	5.51 "	71 mm	210 mW	1.5 m	59 in	264 VAC	80 VAC	0.772 lb	350.17 g	5 A	ITE (Commercial)	CB	Desktop (Class II)	IEC 320-C8	90 W	Level VI	International	Cord	60 °C
XP POWER AJM90PS19C2	19 V	4 Pin	Power DIN	22 mm	0.87 in	140 mm	2.8 in	5.51 "	71 mm	210 mW	1.5 m	59 in	264 VAC	80 VAC	0.772 lb	350.17 g		ITE (Commercial)	CB	Desktop (Class II)	IEC 320-C8	90 W	Level VI	International	Cord	60 °C
XP POWER AJM90PS12C2	12 V	4 Pin	Power DIN	22 mm	0.87 in	140 mm	2.8 in	5.51 "	71 mm	210 mW	1.5 m	59 in	264 VAC	80 VAC	0.772 lb	350.17 g	7.5 A	ITE (Commercial)	CB	Desktop (Class II)	IEC 320-C8	90 W	Level VI	International	Cord	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 72.00

General part information

18V 90 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
