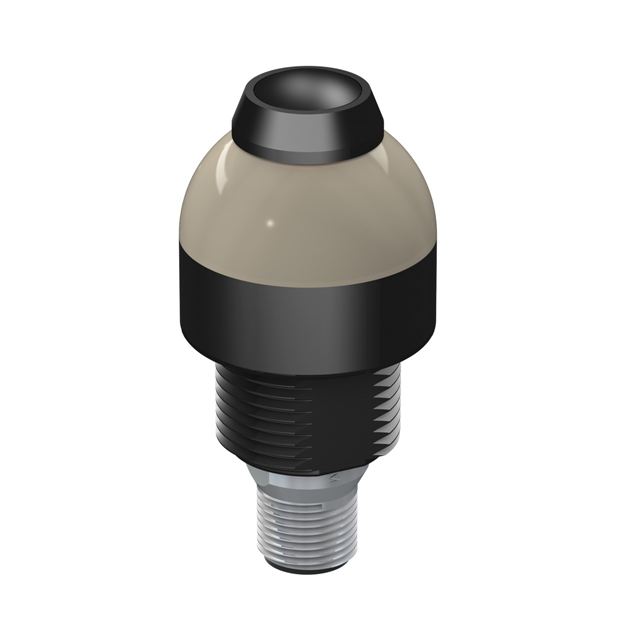

K30APPBGXDQ

Active

BANNER ENGINEERING

K30 SERIES EZ-LIGHT: 1-COLOR PUSH BUTTON SENSOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

K30 SERIES EZ-LIGHT: 1-COLOR PUSH BUTTON SENSOR

Technical Specifications

Parameters and characteristics for this part

Specification	K30APPBGXDQ

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Current Rating (Amps)	150 mA
Illumination Type, Color	LED, Green
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	Off-Mom
Termination Style	Connector
Type	Illuminated, Standard
Voltage Rating - DC	30 V

Part	Actuator Marking	Switch Function	Circuit	Termination Style	Actuator Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Type	Ingress Protection	Illumination Type, Color	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING K30APPBGXDQ	No Marking	Off-Mom	SPST-NO	Connector	Button Domed Round	30 V	22 mm	Illuminated Standard	IP65 - Dust Tight Water Resistant	Green LED	150 mA	Panel Mount Front	-40 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 131.00
Newark	Each	1	$ 131.00

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
