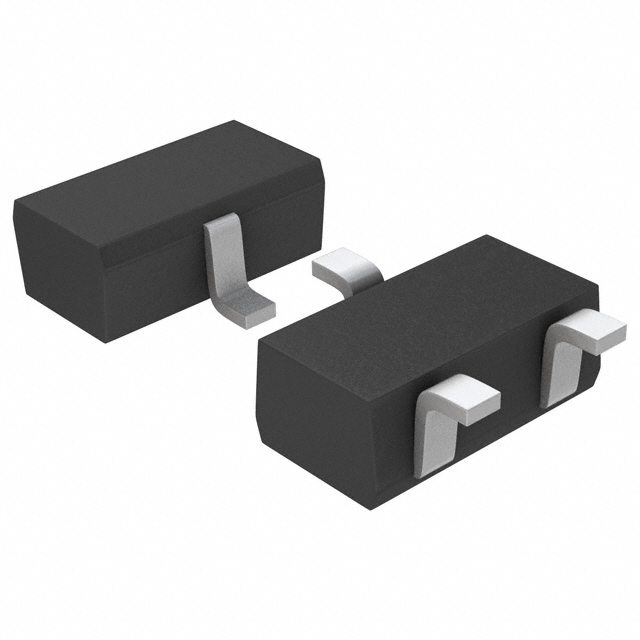

2SA1790JCL

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 20V 0.03A SSMINI3-F1

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 20V 0.03A SSMINI3-F1

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1790JCL

Current - Collector (Ic) (Max) [Max]	30 mA
Current - Collector Cutoff (Max) [Max]	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	110
Frequency - Transition	300 MHz
Mounting Type	Surface Mount
Operating Temperature	125 ¯C
Package / Case	SC-89, SOT-490
Power - Max [Max]	125 mW
Supplier Device Package	SSMini3-F1
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Noise Figure (dB Typ @ f) [Max]	Noise Figure (dB Typ @ f) [Min]	Package / Case	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Power - Max [Max]	Mounting Type	Operating Temperature	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)
Panasonic Industrial Automation Sales 2SA1790GCL	4 dB	2.8 dB	SC-89 SOT-490	PNP	110	30 mA	300 MHz	125 mW	Surface Mount	125 ¯C	SSMini3-F3	20 V
Panasonic Industrial Automation Sales 2SA1790JCL			SC-89 SOT-490	PNP	110	30 mA	300 MHz	125 mW	Surface Mount	125 ¯C	SSMini3-F1		100 µA	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 20 V 30 mA 300MHz 125 mW Surface Mount SSMini3-F1
