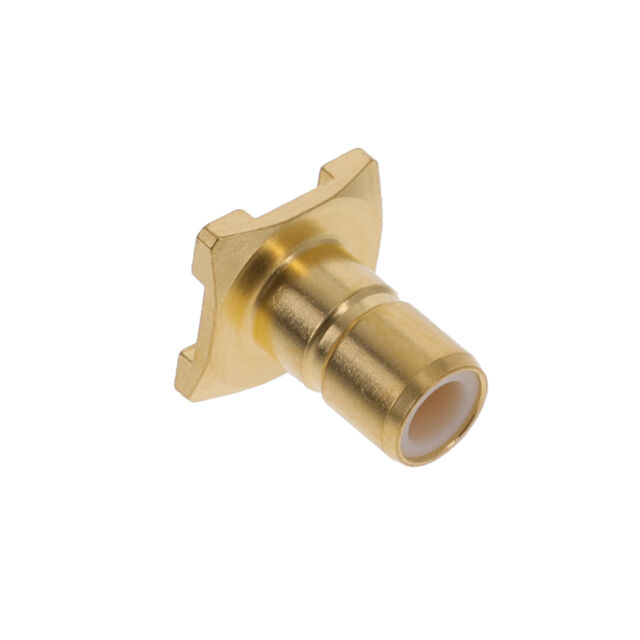

82_SMB-S50-0-30/111_NH

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

82_SMB-S50-0-30/111_NH

Technical Specifications

Parameters and characteristics for this part

Specification	82_SMB-S50-0-30/111_NH

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Finish	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Plating	Mounting Type	Fastening Type	Number of Ports	Frequency - Max [Max]	Housing Color	Contact Termination	Shield Termination	Mating Cycles	Body Material	Dielectric Material	Connector Style	Connector Type
Huber+Suhner, Inc. 82_SMB-S50-0-30/111_NH	Gold	Brass	-65 ░C	165 °C	50 Ohms	Gold	Surface Mount	Snap-On	1	4 GHz	Gold	Solder	Solder	500	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	SMB	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Female Socket 50 Ohms Surface Mount Solder
