LAE5UM-25F-6BG381E

Active

LATTICE SEMICONDUCTOR

LATTICE ECP5 AUTO GRADE (AEC-Q100), 24.3K LUTS, 1.1V, SERDES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

LATTICE ECP5 AUTO GRADE (AEC-Q100), 24.3K LUTS, 1.1V, SERDES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	LAE5UM-25F-6BG381E

Mounting Type	Surface Mount
Number of I/O	197
Number of LABs/CLBs	3000
Number of Logic Elements/Cells	24000
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

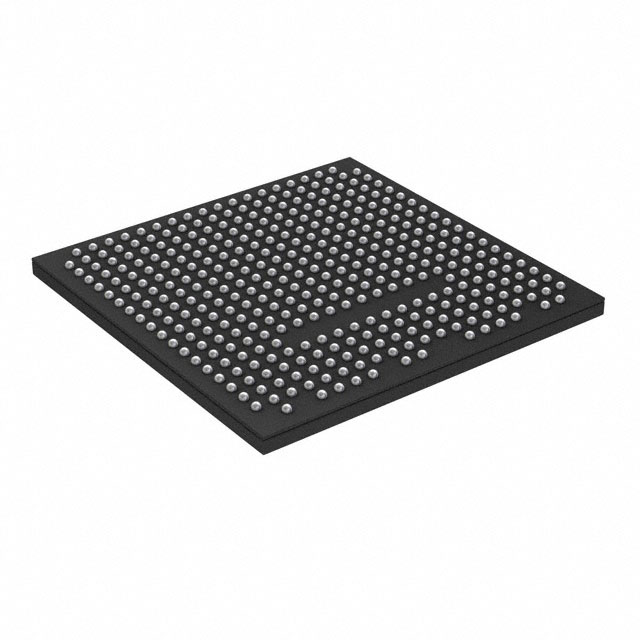

Package / Case	381-FBGA
Supplier Device Package	381-CABGA (17x17)
Total RAM Bits	1032192
Voltage - Supply [Max]	1.155 V
Voltage - Supply [Min]	1.04 V

Part	Number of LABs/CLBs	Number of Logic Elements/Cells	Package / Case	Supplier Device Package	Total RAM Bits	Number of I/O	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
LATTICE SEMICONDUCTOR LAE5UM-25F-6BG381E	3000	24000	381-FBGA	381-CABGA (17x17)	1032192	197	Surface Mount	-40 °C	125 ¯C	1.155 V	1.04 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LA-ECP5 Field Programmable Gate Array (FPGA) IC 197 1032192 24000 381-FBGA
