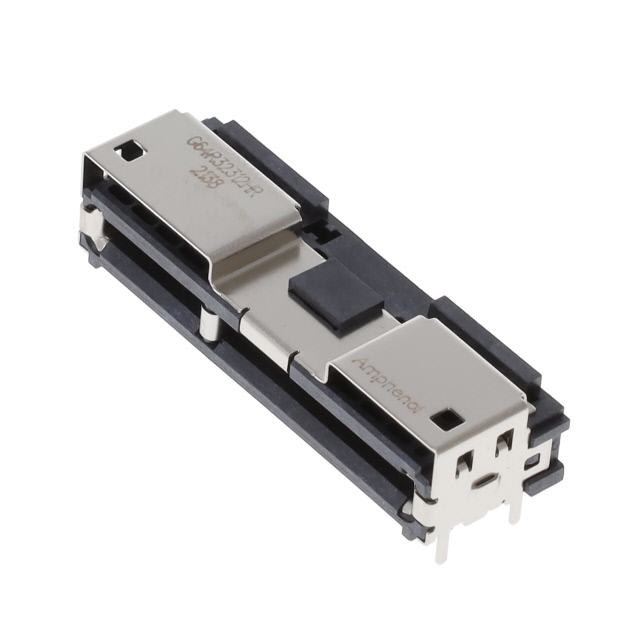

G64R32312HR

Active

Amphenol ICC (Commercial Products)

CONN EDGE DUAL FMALE 84P 0.024

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN EDGE DUAL FMALE 84P 0.024

Technical Specifications

Parameters and characteristics for this part

Specification	G64R32312HR

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	84
Number of Positions/Bay/Row [custom]	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.6 mm
Pitch [x]	0.024 in
Read Out	Dual
Termination	Solder
Termination Rows	2

Part	Contact Material	Read Out	Color	Number of Rows	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Termination	Card Type	Features	Contact Finish	Gender	Termination Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
Amphenol ICC (Commercial Products) G64R32312HR	Copper Alloy	Dual	Black	2	Thermoplastic	85 °C	-40 °C	0.6 mm	0.024 in	Solder	Non Specified - Dual Edge	Board Guide Solder Retention	Gold	Female	2	84	0.76 Ám	30 Áin	Surface Mount Right Angle	28	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

84 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
