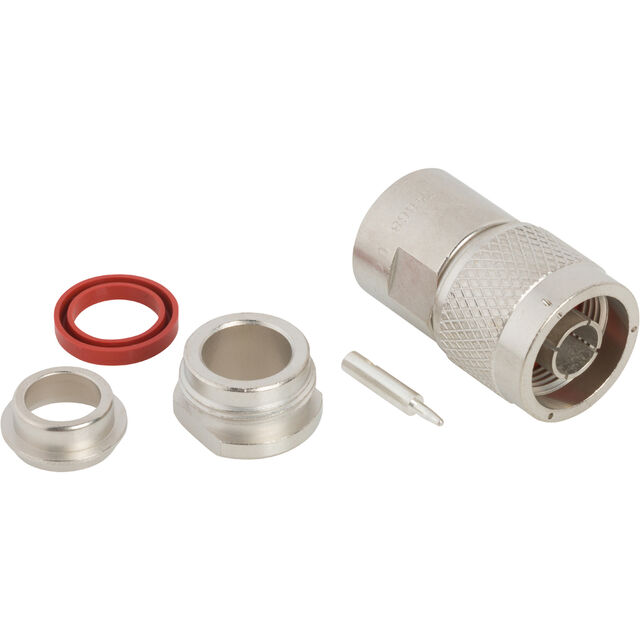

082-3202

Active

Amphenol RF

N STRAIGHT CLAMP PLUG FOR RG8, R

Search across all available documentation for this part.

Active

Amphenol RF

N STRAIGHT CLAMP PLUG FOR RG8, R

Technical Specifications

Parameters and characteristics for this part

Specification	082-3202

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Washer, 1 Gasket, 1 Connector, 1 Contact, 1 Clamp
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Shield Termination	Contact Termination	Mating Cycles	Connector Style	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Plating	Impedance	Center Contact Material	Housing Color	Includes	Number of Ports	Cable Group	Body Material	Dielectric Material	Connector Type	Mounting Type
Amphenol RF 082-3202	Clamp	Solder	500	N Type	11 GHz	-65 ░C	165 °C	Nickel	Silver	50 Ohms	Brass	Silver	1 Clamp 1 Connector 1 Contact 1 Gasket 1 Nut 1 Washer	1	213 214 225 302 393 87 8A 9 9A 9B RG-8	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
