SS-74301-001

Active

BEL MAGNETIC SOLUTIONS

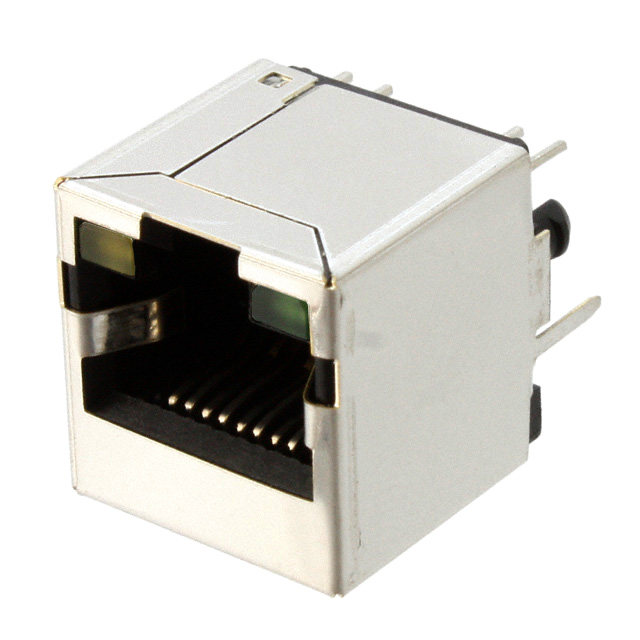

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT5E, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT5E, THROUGH HOLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	SS-74301-001

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Contact Material	Number of Positions/Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Mounting Type	Connector Type	Number of Ports	Contact Finish	Termination	Housing Material	Shielding	Orientation	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	LED Color
BEL MAGNETIC SOLUTIONS SS-74301-001	Copper Alloy	8p8c (RJ45 Ethernet)	85 °C	-40 °C	User Selectable	Through Hole	Jack	1	Gold	Solder	Thermoplastic	Shielded	Vertical	1	0.76 Ám	30 Áin	Green Yellow
