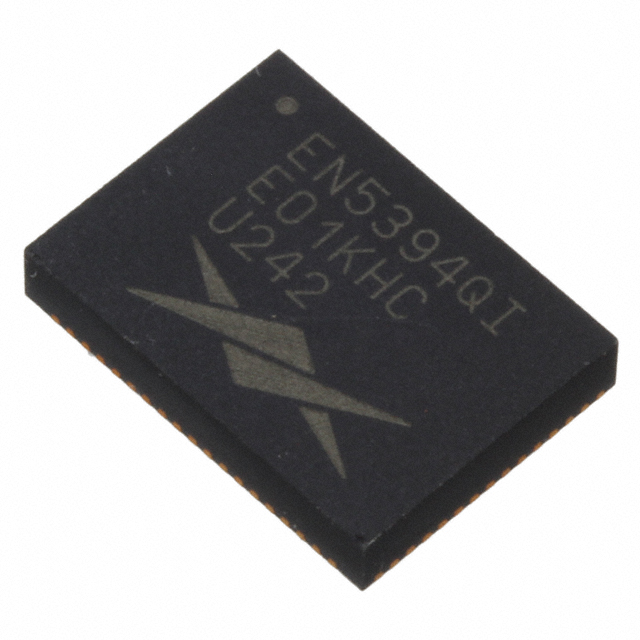

EN5394QI
ObsoleteAltera
DC DC CONVERTER 0.6-5.88V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN5394QI
ObsoleteAltera
DC DC CONVERTER 0.6-5.88V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EN5394QI |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Efficiency | 93 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 68-FQFN Exposed Pad, Module |
| Size / Dimension [x] | 0.43 " |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [y] | 8 mm |
| Size / Dimension [y] | 0.31 " |
| Size / Dimension [z] | 0.07 " |
| Size / Dimension [z] | 1.9 mm |
| Supplier Device Package | 68-QFN (11x8) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 6.6 V |
| Voltage - Input (Min) [Min] | 2.375 V |
| Voltage - Output 1 [Max] | 5.88 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EN5394 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.88V 9A 2.375V - 6.6V Input
