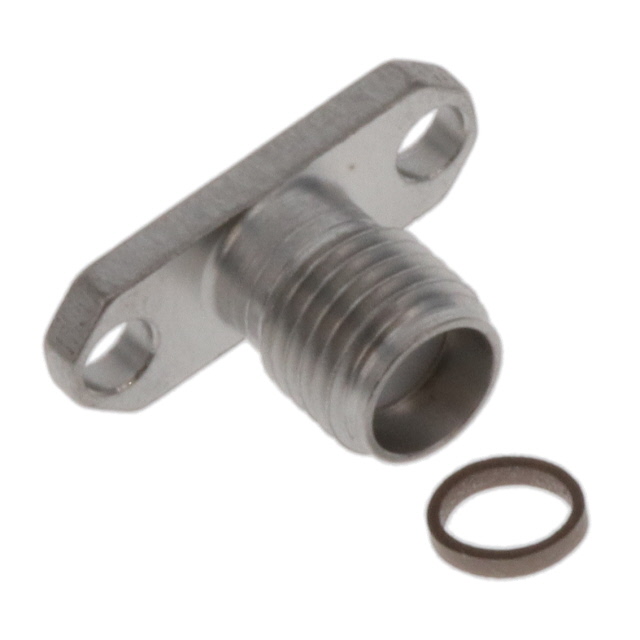

1052634-1

Obsolete

TE Connectivity Raychem Cable Protection

CONN SMA RCPT STR 50OHM COMPRESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1052634-1

Obsolete

TE Connectivity Raychem Cable Protection

CONN SMA RCPT STR 50OHM COMPRESS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1052634-1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	EMI/RFI Gasket, For Hermetically Sealed Pin, Field Replaceable
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

1052 Series

Part	Number of Ports	Body Material	Dielectric Material	Housing Color	Contact Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Frequency - Max [Max]	Mounting Feature	Mating Cycles	Center Contact Plating	Connector Style	Connector Type	Shield Termination	Impedance	Features	Includes	Mounting Type	Cable Group	Body Finish
TE Connectivity Raychem Cable Protection 1052563-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Solder	Beryllium Copper	-65 ░C	105 ░C	335 V	18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Solder	50 Ohms
TE Connectivity Raychem Cable Protection 1052646-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Compression	Beryllium Copper	-65 ░C	165 °C	335 V	18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Screw	50 Ohms	Field Replaceable For Hermetically Sealed Pin
TE Connectivity Raychem Cable Protection 1052628-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Compression	Beryllium Copper	-65 ░C	165 °C		18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Screw	50 Ohms	EMI/RFI Gasket Field Replaceable For Hermetically Sealed Pin	1 Connector 1 Gasket
TE Connectivity Raychem Cable Protection 1052596-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Solder	Beryllium Copper	-65 ░C	125 °C	335 V	18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Solder	50 Ohms	Extended Insulation
TE Connectivity Raychem Cable Protection 1052990-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Solder	Beryllium Copper	-65 ░C	125 °C	335 V	18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Solder	50 Ohms	Extended Insulation		Panel Mount Right Angle
TE Connectivity Raychem Cable Protection 1052024-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Solder	Beryllium Copper	-65 ░C	165 °C	250 VDC	3 GHz	Flange	500	Gold	SMA	Female Socket Jack	Crimp	50 Ohms		1 Bushing 1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Sleeve		316 RG-174
TE Connectivity Raychem Cable Protection 1052981-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Solder	Beryllium Copper	-65 ░C	125 °C	335 V	18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Solder	50 Ohms	Extended Insulation		Panel Mount Right Angle		Gold
TE Connectivity Raychem Cable Protection 1052634-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Compression	Beryllium Copper	-65 ░C	165 °C		18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Screw	50 Ohms	EMI/RFI Gasket Field Replaceable For Hermetically Sealed Pin
TE Connectivity Raychem Cable Protection 1052720-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	Solder	Beryllium Copper					Flange	500	Gold	SMA	Female Socket Receptacle	Solder	50 Ohms
TE Connectivity Raychem Cable Protection 1052527-1	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Microstrip Solder	Beryllium Copper	-65 ░C	125 °C	335 V	18 GHz	Flange	500	Gold	SMA	Female Socket Receptacle	Solder	50 Ohms	Extended Insulation				Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.77
		10	$ 15.55
		25	$ 14.44
		50	$ 13.65
		100	$ 12.90

Description

General part information

1052 Series

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
