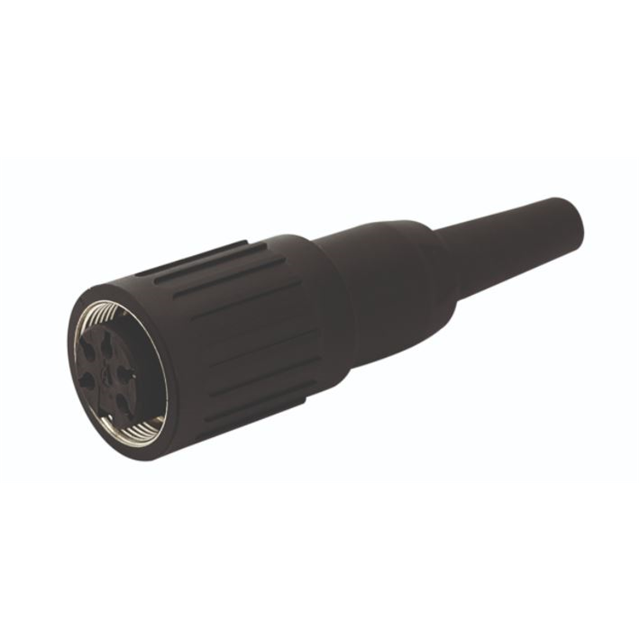

T 3476 013

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

T 3476 013

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SOLDER CUP

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3476 013

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7
Shielding	Shielded
Voltage Rating	250 VDC

T 3476 Series

Part	Orientation	Connector Type	Number of Positions	Note	Shell Finish	Contact Type	Material Flammability Rating	Features	Housing Color	Shell Material	Contact Size	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Shell Size - Insert	Ingress Protection	Insert Material	Contact Shape	Color	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating
Amphenol Tuchel Industrial T 3476 552	Keyed	Plug Housing	7	Contacts Not Included	Nickel	Crimp	UL94 V-0	Backshell Cable Clamp Coupling Nut	Black Silver	Die Cast	1.5 mm	Shielded	100 °C	-40 °C	For Female Sockets	Free Hanging (In-Line)	M16-7	IP40	Thermoplastic	Circular
Amphenol Tuchel Industrial T 3476 018	Keyed	Female Sockets Plug	7		Nickel			Strain Relief		Die Cast		Shielded	100 °C	-40 °C		Free Hanging (In-Line)	M16-7	IP40			Silver	Metal	7 A	Gold	250 VDC
Amphenol Tuchel Industrial T 3476 005	Keyed	Female Sockets Plug	7		Nickel			Strain Relief		Die Cast		Shielded	100 °C	-40 °C		Free Hanging (In-Line) Right Angle	M16-7	IP40			Silver	Metal	7 A	Silver	250 VDC
Amphenol Tuchel Industrial T 3476 004	Keyed	Female Sockets Plug	7		Nickel			Strain Relief		Die Cast		Shielded	100 °C	-40 °C		Free Hanging (In-Line)	M16-7	IP40			Silver	Metal	7 A	Silver	250 VDC
Amphenol Tuchel Industrial T 3476 055	Keyed	Plug Housing	7	Contacts Not Included	Nickel	Crimp	UL94 V-0	Cable Clamp Coupling Nut Strain Relief	Silver	Die Cast	1.5 mm	Shielded	100 °C	-40 °C	For Female Sockets	Free Hanging (In-Line) Right Angle	M16-7	IP40	Thermoplastic	Circular
Amphenol Tuchel Industrial T 3476 551	Keyed	Plug Housing	7	Contacts Not Included	Nickel	Crimp	UL94 V-0	Cable Clamp Coupling Nut Strain Relief	Silver	Die Cast	1.5 mm	Shielded	100 °C	-40 °C	For Female Sockets	Free Hanging (In-Line)	M16-7	IP40	Thermoplastic	Circular
Amphenol Tuchel Industrial T 3476 013	Keyed	Female Sockets Plug	7		Nickel			Strain Relief		Die Cast		Shielded	100 °C	-40 °C		Free Hanging (In-Line)	M16-7	IP40			Silver	Metal	7 A	Silver	250 VDC
Amphenol Tuchel Industrial T 3476 002	Keyed	Female Sockets Plug	7		Nickel			Cable Clamp Strain Relief		Die Cast		Shielded	100 °C	-40 °C		Free Hanging (In-Line)	M16-7	IP40			Silver	Metal	7 A	Silver	250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.18
		10	$ 10.56
		25	$ 10.21

Description

General part information

T 3476 Series

7 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
