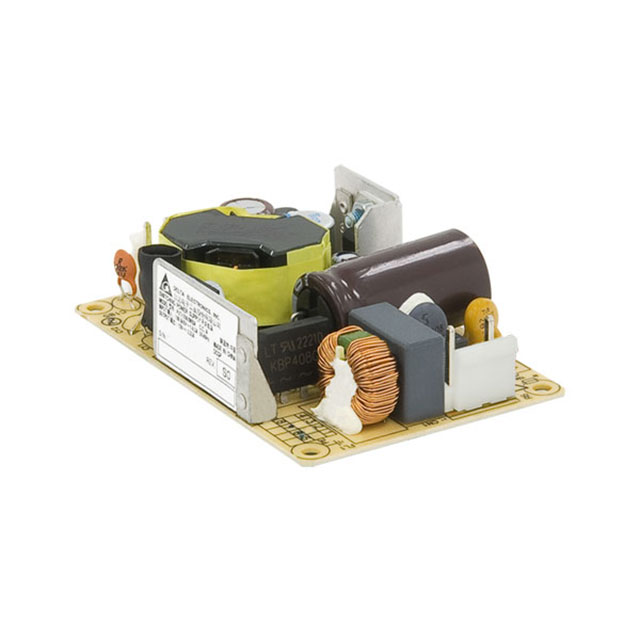

PJT-18V40WBAA

Active

Delta Electronics

AC/DC CONVERTER 18V 40W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 18V 40W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Features	Approval Agency	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Mounting Type	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
Delta Electronics PJT-18V40WBAA	ITE (Commercial)	Universal Input	CB CE cURus TUV	86 %	90 VAC	264 VAC	2.22 A	3000 V	0.9 "	76.2 mm	50.8 mm	22.9 mm	3 "	2 in	Open Frame	Chassis Mount	18 V	1	-10 °C	70 °C	40 W
Delta Electronics PJT-18V65WBAA	ITE (Commercial)	Universal Input	CB CE cURus TUV	88 %	90 VAC	264 VAC	3.61 A	3000 V	1.18 in	101.6 mm			4 in	2 in	Open Frame	Chassis Mount	18 V	1	-10 °C	70 °C		50.8 mm	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	88	$ 18.26
