HRM-402S(40)

LTB

Hirose Electric USA, Inc.

RF CONNECTORS / COAXIAL CONNECTORS

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

RF CONNECTORS / COAXIAL CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-402S(40)

Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	1000
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Center Contact Material	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Frequency - Max [Max]	Contact Termination	Impedance	Housing Color	Body Material	Connector Style	Center Contact Plating	Shield Termination	Number of Ports	Dielectric Material	Mating Cycles	Connector Type	Features
Hirose Electric USA, Inc. HRM-402S(40)	Brass	0.1 dB	-55 °C	125 °C	Flange	12.4 GHz	Solder	50 Ohms	Silver	Stainless Steel	SMA	Gold	Solder	1	Polytetrafluoroethylene (PTFE)	1000	Male Pin Plug	Extended Insulation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

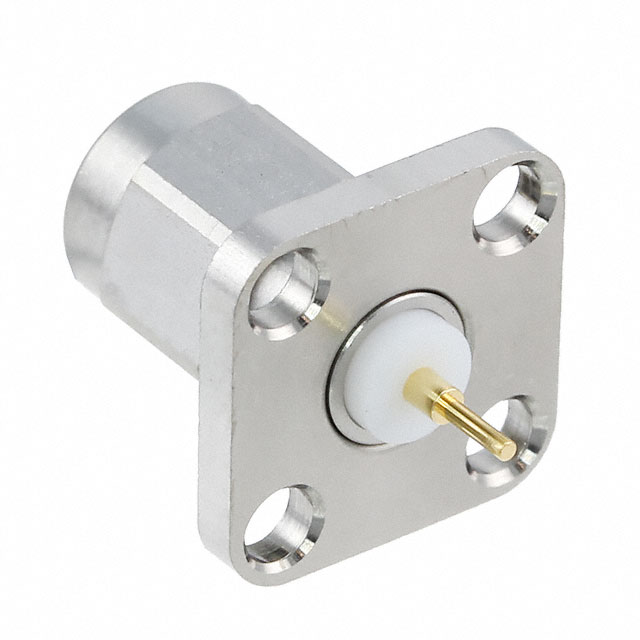

SMA Connector Plug, Male Pin 50 Ohms Panel Mount Solder
