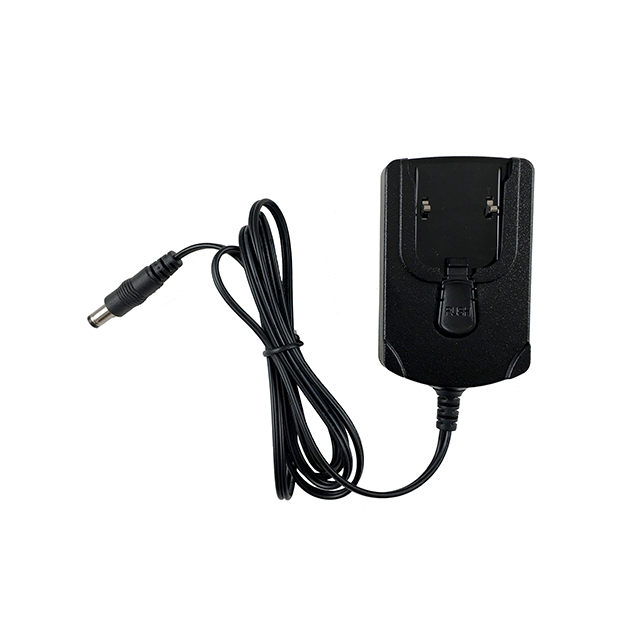

PSM10R-050A
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSM10R-050A
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSM10R-050A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, cULus |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 10 mm |
| Polarization | Positive Center |
| Power (Watts) | 10 W |
| Region Utilized | International |
| Size / Dimension [x] | 71.7 mm |
| Size / Dimension [x] | 2.82 " |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.58 | |
| 10 | $ 9.31 | |||
| 25 | $ 9.08 | |||
| 50 | $ 8.76 | |||
| 100 | $ 8.68 | |||
| 250 | $ 8.42 | |||
| 500 | $ 8.16 | |||
| 1000 | $ 7.92 | |||
Description
General part information
PSM10R Series
5V 10 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
