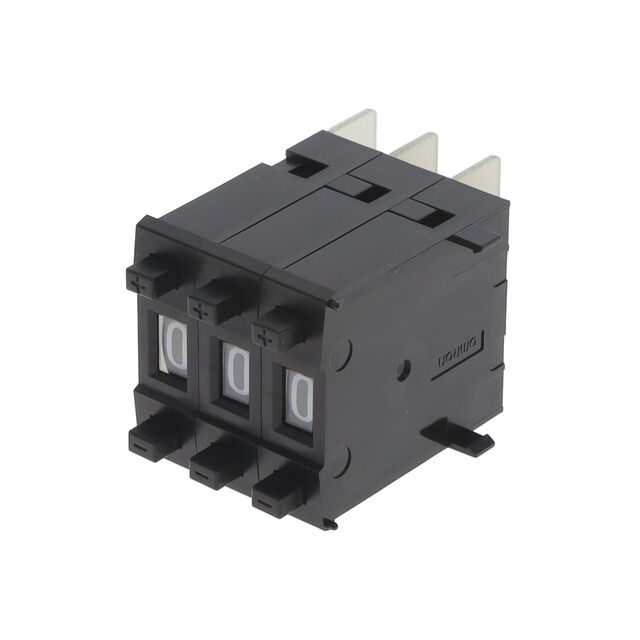

A7PH-206-1

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A7PH-206-1

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.15A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A7PH-206-1

Actuator Type	Pushwheel
Color	Black
Contact Rating @ Voltage	0.15 A
Depth Behind Flange	43 mm
Display Characters - Height [z]	0.268 in
Display Characters - Height [z]	6.8 mm
Electrical Life	1000000 Cycles
End Caps	Sold Separately
Mounting Type	Panel Mount, Snap-In
Number of Sections	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Output Code	BCD
Read Out [Max]	9
Read Out [Min]	0
Section Width [x]	0.394 in
Section Width [x]	10 mm
Termination Style	Solder Pad, Card Edge

A7P Series

Part	Electrical Life	Actuator Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage [x]	Read Out	Termination Style	End Caps	Depth Behind Flange	Number of Sections	Output Code	Color	Display Characters - Height [z]	Display Characters - Height [z]	Section Width [x]	Section Width [x]	Read Out [Min]	Read Out [Max]	Read Out [Max]	Read Out [Min]	Contact Rating @ Voltage	Features
Omron Electronics Inc-EMC Div A7PS-206-PM-1	50000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C	0.1 A 28 VDC 50 VAC	+/-	Card Edge Solder Pad	Sold Separately	43 mm	1	SPDT	Black	0.268 in	6.8 mm	0.394 in	10 mm
Omron Electronics Inc-EMC Div A7PS-203-1	50000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C	0.1 A 28 VDC 50 VAC		Card Edge Solder Pad	Sold Separately	43 mm	1	Decimal	Black	0.268 in	6.8 mm	0.394 in	10 mm	0	9
Omron Electronics Inc-EMC Div A7PS-206-1	50000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C	0.1 A 28 VDC 50 VAC		Card Edge Solder Pad	Sold Separately	43 mm	1	BCD	Black	0.268 in	6.8 mm	0.394 in	10 mm	0	9
Omron Electronics Inc-EMC Div A7PS-206	50000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C	0.1 A 28 VDC 50 VAC		Card Edge Solder Pad	Sold Separately	43 mm	1	BCD	Light Gray	0.268 in	6.8 mm	0.394 in	10 mm	0	9
Omron Electronics Inc-EMC Div A7PH-254-1	1000000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C			Card Edge Solder Pad	Sold Separately	43 mm	1	Hexadecimal	Black	0.157 in	4 mm	0.394 in	10 mm			9 F	0 A	0.15 A
Omron Electronics Inc-EMC Div A7PS-207	50000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C	0.1 A 28 VDC 50 VAC		Card Edge/Solder Pad with Component Mounting	Sold Separately	55 mm	1	BCD	Light Gray	0.268 in	6.8 mm	0.394 in	10 mm	0	9
Omron Electronics Inc-EMC Div A7PH-206-1	1000000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C			Card Edge Solder Pad	Sold Separately	43 mm	1	BCD	Black	0.268 in	6.8 mm	0.394 in	10 mm	0	9			0.15 A
Omron Electronics Inc-EMC Div A7PS-207-D1	50000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C	0.1 A 28 VDC 50 VAC		Card Edge/Solder Pad with Component Mounting	Sold Separately	55 mm	1	BCD	Black	0.268 in	6.8 mm	0.394 in	10 mm	0	9				Diode
Omron Electronics Inc-EMC Div A7PH-207-PM	1000000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C		+/-	Card Edge/Solder Pad with Component Mounting	Sold Separately	55 mm	1	SPDT	Light Gray	0.268 in	6.8 mm	0.394 in	10 mm					0.15 A
Omron Electronics Inc-EMC Div A7PS-206-S04-1	50000 Cycles	Pushwheel	Panel Mount Snap-In	-10 °C	65 °C	0.1 A 28 VDC 50 VAC		Card Edge Solder Pad	Sold Separately	43 mm	1	BCD	Black	0.268 in	6.8 mm	0.394 in	10 mm	0	9				Internal Stoppers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.12
		10	$ 29.88
		50	$ 26.59
		100	$ 23.90
		250	$ 22.41
