6GK52080GA002FC2

Active

Siemens

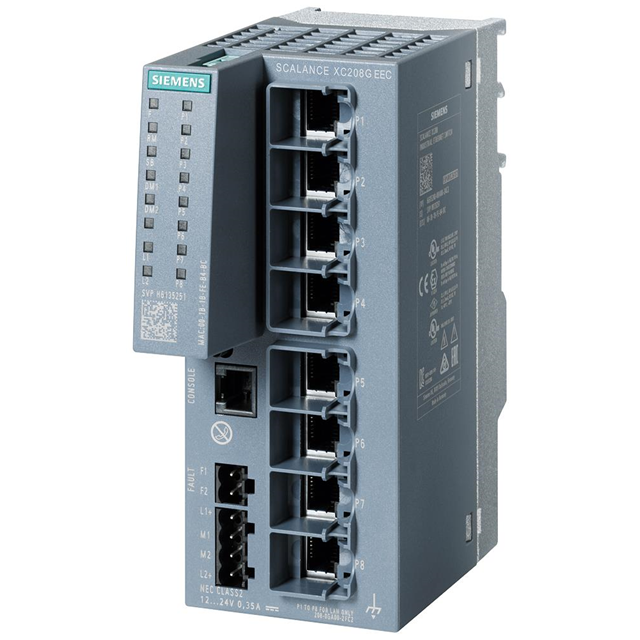

SCALANCE XC208G EEC

Search across all available documentation for this part.

Active

Siemens

SCALANCE XC208G EEC

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Voltage - Input [Min]	Voltage - Input [Max]	Copper Type	Connector Type	Mounting Type	Number of Ports	Configuration	Copper Ports	Operating Temperature [Min]	Operating Temperature [Max]	PoE Ports
Siemens 6GK52080HA002AS6	IP65	19.2 V	28.8 V	10/100	M12	Wall Mount	8	Fixed	8	-40 °C	70 °C
Siemens 6GK52080HA002TS6	IP65	19.2 V	28.8 V		M12	Wall Mount	8	Fixed		-40 °C	70 °C
Siemens 6GK52080HA102AA6	IP65 IP67	18 V	32 V		M12	DIN Rail Wall Mount	8	Fixed		-40 °C	70 °C
Siemens 6GK52080GA002FC2		9.6 V	31.2 V	10 100 1000	RJ11 RJ45	DIN Rail Wall Mount	8	Fixed	8	-40 °C	70 °C
Siemens 6GK52080RA005AC2		52 V	57 V	10 100 1000	RJ11 RJ45	DIN Rail Wall Mount	8	Fixed	8	-40 °C	60 °C	6
Siemens 6GK52080HA002ES6	IP65	19.2 V	28.8 V		M12	Wall Mount	8	Fixed		-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1181.67

General part information

Network Switch - Managed 8 Ports IP20

Technical documentation and resources
