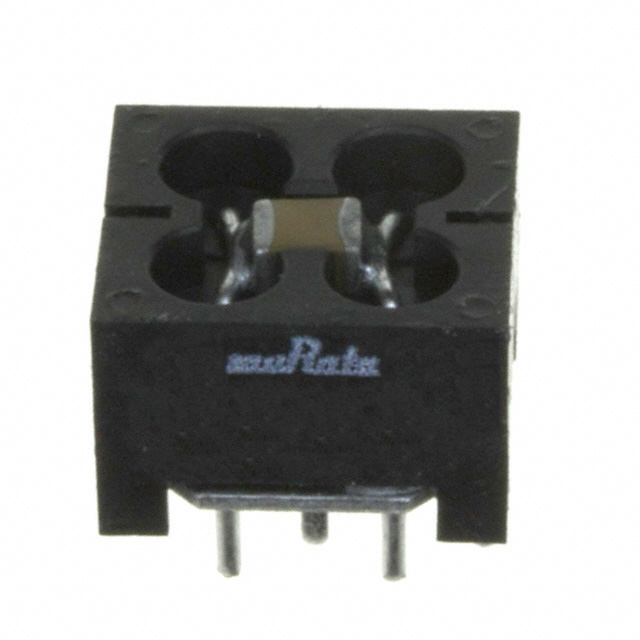

BNX016-01

Active

Murata Power Solutions Inc.

FILTER LC TH

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

FILTER LC TH

Technical Specifications

Parameters and characteristics for this part

Specification	BNX016-01

Applications	Data Lines for Mobile Devices
Attenuation Value	40 dB
Current	15 A
ESD Protection	False
Filter Order	5th
Height [z]	8.5 mm
Height [z]	0.335 in
Mounting Type	Through Hole
Number of Channels [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Block, 4 Lead
Size / Dimension [x]	12 mm
Size / Dimension [x]	0.472 in
Size / Dimension [y]	0.433 in
Size / Dimension [y]	11 mm
Technology	LC
Type	Low Pass
Voltage - Rated	25 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height [z]	Height [z]	Filter Order	Technology	Attenuation Value	Values	Package / Case	Current	Applications	Type	Voltage - Rated	Resistance - Channel (Ohms)	Number of Channels [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Murata Power Solutions Inc. BNX023-01L	125 °C	-40 °C	0.13 in	3.3 mm	5th	LC	35 dB	1 µF	4-SMD No Lead	20 A	Data Lines for Mobile Devices	Low Pass	100 V	0.00043 Ohms	2	Surface Mount	0.476 in	9.1 mm	12.1 mm	0.358 in
Murata Power Solutions Inc. BNX016-01	125 °C	-40 °C	0.335 in	8.5 mm	5th	LC	40 dB		Block 4 Lead	15 A	Data Lines for Mobile Devices	Low Pass	25 VDC		2	Through Hole	0.472 in	11 mm	12 mm	0.433 in
Murata Power Solutions Inc. BNX024H01L	125 °C	-55 °C	0.146 in	3.7 mm	5th	LC	35 dB	4.7 µF	4-SMD No Lead	20 A		Low Pass	50 VDC	0.00043 Ohms	2	Surface Mount	0.476 in	9.1 mm	12.1 mm	0.358 in
Murata Power Solutions Inc. BNX022-01B	125 °C	-40 °C	0.13 in	3.3 mm	5th	LC	35 dB	1 µF	4-SMD No Lead	10 A	Data Lines for Mobile Devices	Low Pass	50 VDC	0.00043 Ohms	2	Surface Mount	0.476 in	9.1 mm	12.1 mm	0.358 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LC EMI Filter 5th Order Low Pass 2 Channel 15 A Block, 4 Lead
