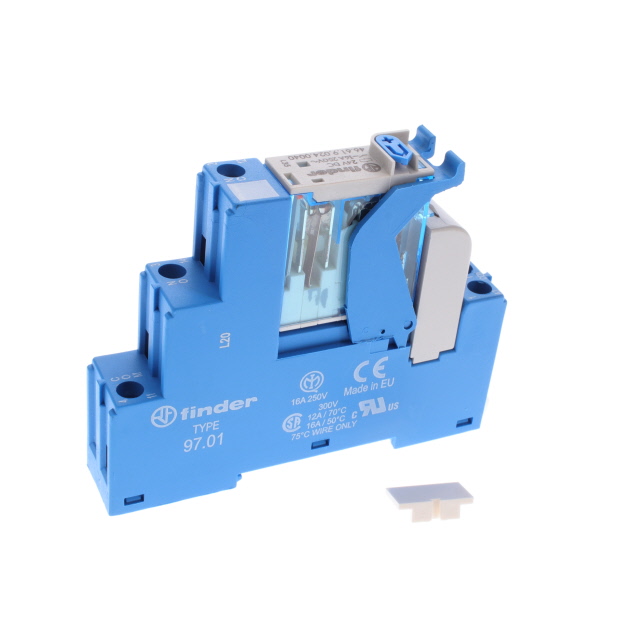

4C.01.9.024.0050SPA
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4C.01.9.024.0050SPA
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4C.01.9.024.0050SPA |
|---|---|
| Coil Current | 20 mA |
| Coil Resistance | 1.2 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Features | Lighted Indicator, Diode |
| Load - Max Switching | 7040 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 17.5 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 12 ms |
| Switching Voltage | 440 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.50 | |
| 10 | $ 17.03 | |||
| 25 | $ 16.14 | |||
| 50 | $ 15.49 | |||
| 100 | $ 14.88 | |||
| 250 | $ 14.10 | |||
| 500 | $ 13.53 | |||
Description
General part information
4C.01.9 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
