VS-10MQ100HM3/5AT

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 1A DO214AC

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 1A DO214AC

Technical Specifications

Parameters and characteristics for this part

Specification	VS-10MQ100HM3/5AT

Capacitance @ Vr, F	38 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	100 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

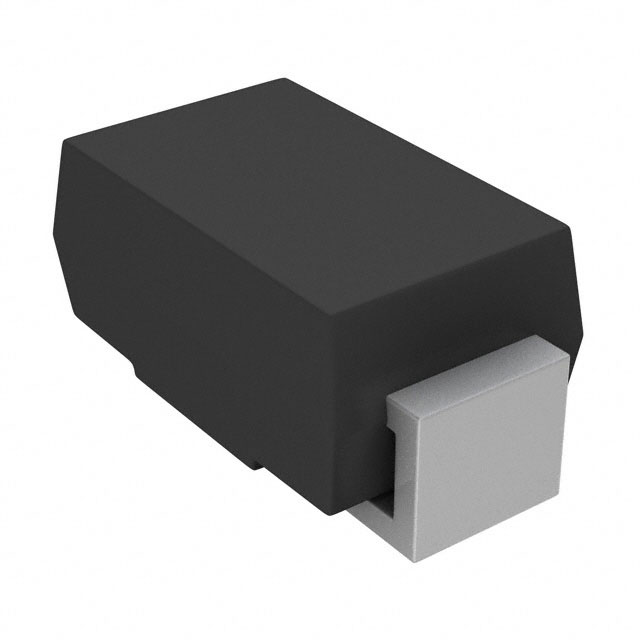

Package / Case	DO-214AC, SMA
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AC (SMA)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If [Max]	780 mV

Part	Current - Average Rectified (Io)	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Package / Case	Speed	Mounting Type	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Grade	Qualification
Vishay General Semiconductor - Diodes Division VS-10MQ100NTRPBF	1 A	38 pF	100 µA	780 mV	Schottky	DO-214AC SMA	200 mA 500 ns	Surface Mount	DO-214AC (SMA)	100 V	150 °C	-55 °C
Vishay General Semiconductor - Diodes Division 10MQ100NTR	2.1 A		100 µA	780 mV	Schottky	DO-214AC SMA	200 mA 500 ns	Surface Mount	DO-214AC (SMA)	100 V	150 °C	-55 °C
Vishay General Semiconductor - Diodes Division VS-10MQ100HM3/5AT	1 A	38 pF	100 µA	780 mV	Schottky	DO-214AC SMA	200 mA 500 ns	Surface Mount	DO-214AC (SMA)	100 V	150 °C	-55 °C	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 1A Surface Mount DO-214AC (SMA)
