15-004730

Active

Amphenol CONEC

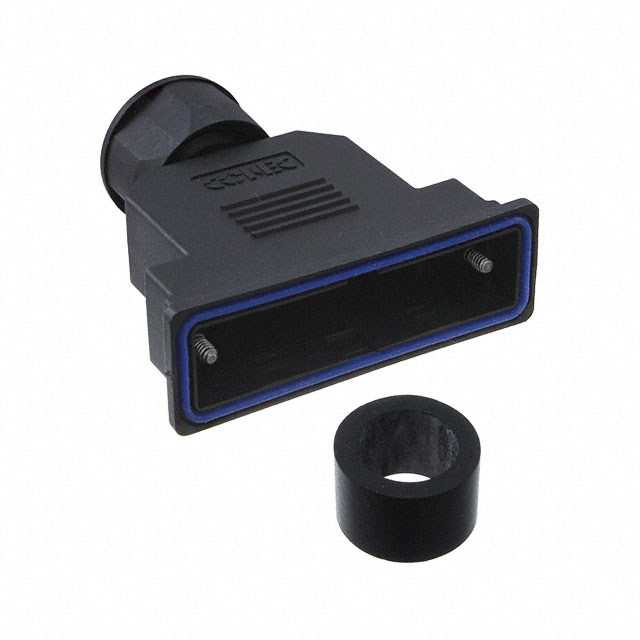

CONN BACKSHELL 25POS 180DEG BLK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 25POS 180DEG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	15-004730

Accessory Type	One Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Mating Screws 4-40, Dust Tight/Waterproof (IP67)
Material	Polybutylene Terephthalate (PBT), Glass Filled
Primary Material	Plastic
Shielding	Unshielded

Part	Accessory Type	Primary Material	Color	Features	Cable Exit	Cable Type	Material	Number of Positions	Shielding	Compatible D-Sub Size	Compatible Shell Size	Plating	Hardware
Amphenol CONEC 15-004740	One Piece Backshell	Plastic	Black	Dust Tight/Waterproof (IP67) Mating Screws 4-40	180 °	Round	Polybutylene Terephthalate (PBT) Glass Filled	37	Unshielded	37pos HD62pos	C
Amphenol CONEC 15-004770	One Piece Backshell	Plastic		Dust Tight/Waterproof (IP67) Mating Screws 4-40	180 °	Round	Acrylonitrile Butadiene Styrene (ABS) Metallized	15	Shielded	15pos HD26pos	A	Nickel	Assembly Hardware Strain Relief
Amphenol CONEC 15-004750	One Piece Backshell	Plastic	Black	Dust Tight/Waterproof (IP67) Mating Screws 4-40	180 °	Round	Polybutylene Terephthalate (PBT) Glass Filled	50	Unshielded	50pos HD78pos	D
Amphenol CONEC 15-004700	One Piece Backshell	Plastic	Black	Dust Tight/Waterproof (IP67) Mating Screws 4-40	180 °	Round	Polybutylene Terephthalate (PBT) Glass Filled	50	Unshielded	50pos HD78pos	D
Amphenol CONEC 15-004730	One Piece Backshell	Plastic	Black	Dust Tight/Waterproof (IP67) Mating Screws 4-40	180 °	Round	Polybutylene Terephthalate (PBT) Glass Filled		Unshielded	25pos HD44pos	B
Amphenol CONEC 15-004790B
Amphenol CONEC 15-004720
Amphenol CONEC 15-004790	One Piece Backshell	Plastic		Dust Tight/Waterproof (IP67) Mating Screws 4-40	180 °	Round	Acrylonitrile Butadiene Styrene (ABS) Metallized	37	Shielded	37pos HD62pos	C	Nickel	Assembly Hardware Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position One Piece Backshell Connector Black 180° Unshielded
