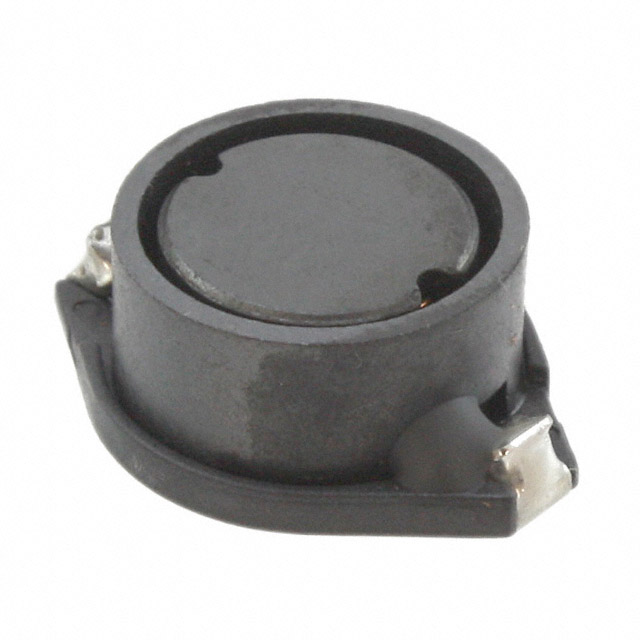

SRR1806-100M
ActiveBourns Inc.
INDUCTOR,FERRITE,10UH,20+% TOL,20-% TOL,7255-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRR1806-100M
ActiveBourns Inc.
INDUCTOR,FERRITE,10UH,20+% TOL,20-% TOL,7255-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR1806-100M |
|---|---|
| Current - Saturation (Isat) | 8.2 A |
| Current Rating (Amps) | 4 A |
| DC Resistance (DCR) | 33 mOhm |
| Frequency - Self Resonant | 19 MHz |
| Height - Seated (Max) | 7.1 mm |
| Height - Seated (Max) [Max] | 0.28 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 2.52 MHz, 56 |
| Shielding | Shielded |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
