9WPA0624P4G0011
ActiveSanyo Denki America Inc.

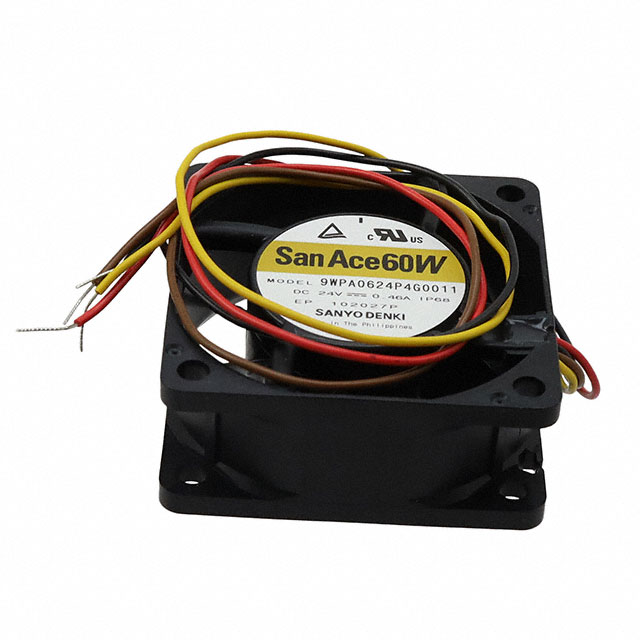

FAN AXIAL 60X25MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9WPA0624P4G0011
ActiveSanyo Denki America Inc.
FAN AXIAL 60X25MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9WPA0624P4G0011 |
|---|---|
| Air Flow | 1.5 m³/min |
| Air Flow | 53.7 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 460 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 56 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 11.04 W |
| RPM | 12000 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 1.44 in H2O |
| Static Pressure | 358.7 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 21.6 VDC |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 53.80 | |
| 10 | $ 48.67 | |||
| 25 | $ 45.47 | |||
| 80 | $ 44.83 | |||
| 160 | $ 41.31 | |||
Description
General part information
9WPA0624 Series
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 53.7 CFM (1.50m³/min) 4 Wire Leads
