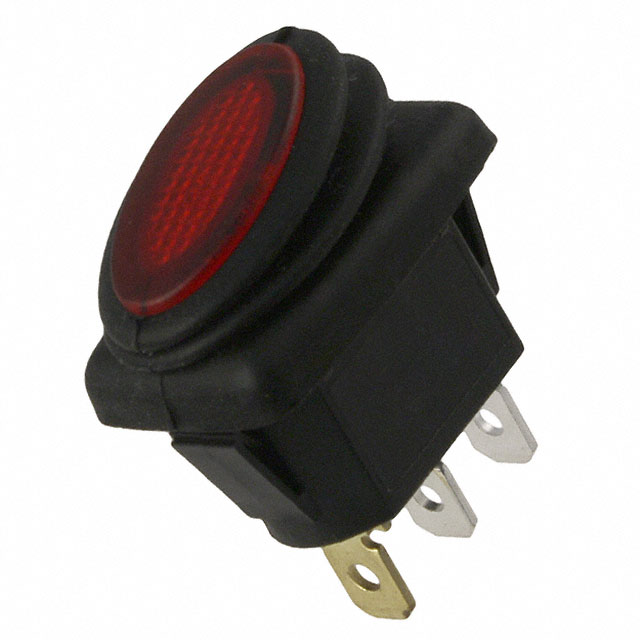

GRB278B802BR1
ActiveCW Industries
SWITCH ROCKER SPST 20A 14V
Deep-Dive with AI
Search across all available documentation for this part.
GRB278B802BR1
ActiveCW Industries
SWITCH ROCKER SPST 20A 14V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB278B802BR1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Oval - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 20 A |
| Illumination Type, Color | Red, LED |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 23.3 mm |
| Panel Cutout Dimensions [y] | 11.6 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.81 | |
| 10 | $ 5.23 | |||
| 25 | $ 4.97 | |||
| 50 | $ 4.76 | |||
| 100 | $ 4.60 | |||
| 250 | $ 4.37 | |||
| 500 | $ 4.03 | |||
| 1000 | $ 3.85 | |||
Description
General part information
GRB278B Series
Rocker Switch SPST 20A (DC) Panel Mount, Snap-In
