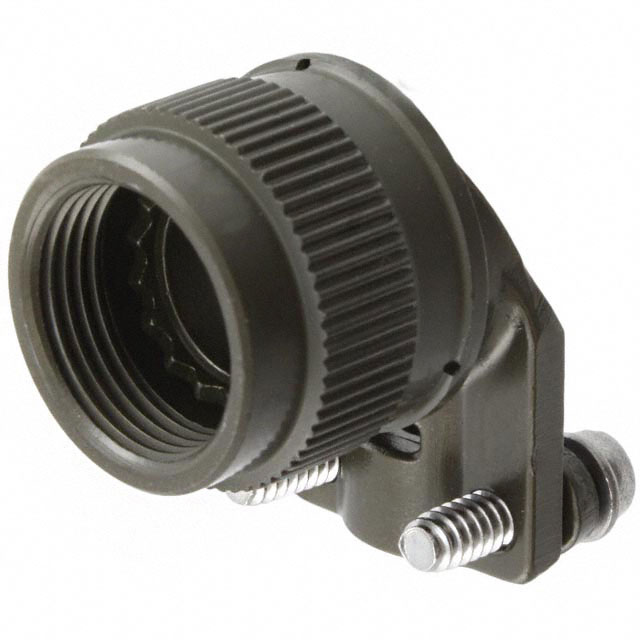

M85049/39-11W

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ11 B OLIVE

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ11 B OLIVE

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/39-11W

Cable Exit	90 °
Cable Opening [Max] [custom]	5.94 mm
Cable Opening [Max] [custom]	0.234 in
Cable Opening [Min] [custom]	0.153 in
Cable Opening [Min] [custom]	3.89 mm
Color	Olive Drab
Diameter - Outside [diameter]	21.59 mm
Diameter - Outside [diameter]	0.85 in
Features	Strain Relief
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	B
Shell Size - Insert	11
Shielding	Unshielded
Type	Cable Clamp

Part	Plating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Size - Insert	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Exit	For Use With/Related Products	Color	Material	Features	Shielding	Diameter - Outside [diameter]	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]
Amphenol Interconnect India M85049/39S17W	Cadmium	15.6 mm	0.283 in	7.19 mm	0.614 in	17 E	Cable Clamp	1.406 in	35.71 mm	90 °	MIL-DTL-38999 Series III IV	Olive Drab	Aluminum Alloy	Self Locking Strain Relief	Unshielded
Amphenol Interconnect India M85049/39-15W	Cadmium					D	Cable Clamp	27.94 mm		90 °	MIL-DTL-38999 Series III IV	Olive Drab	Aluminum Alloy	Strain Relief	Unshielded	1.1 "	15	0.26 in 0.457 in	6.6 mm 11.61 mm
Amphenol Interconnect India M85049/39-11W	Cadmium		0.153 in	3.89 mm	0.234 in	B	Cable Clamp	21.59 mm		90 °	MIL-DTL-38999 Series III IV	Olive Drab	Aluminum Alloy	Strain Relief	Unshielded	0.85 in	11			5.94 mm
Amphenol Interconnect India M85049/39-17W	Cadmium	15.6 mm	0.283 in	7.19 mm	0.614 in	17 E	Cable Clamp	31.75 mm		90 °	MIL-DTL-38999 Series III IV	Olive Drab	Aluminum Alloy	Strain Relief	Unshielded	1.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Drab Connector Cable Clamp 11, B

Technical documentation and resources

No documents available
